EXCISION BEVELER B-DOCK + KFK15 ELECTRA SET

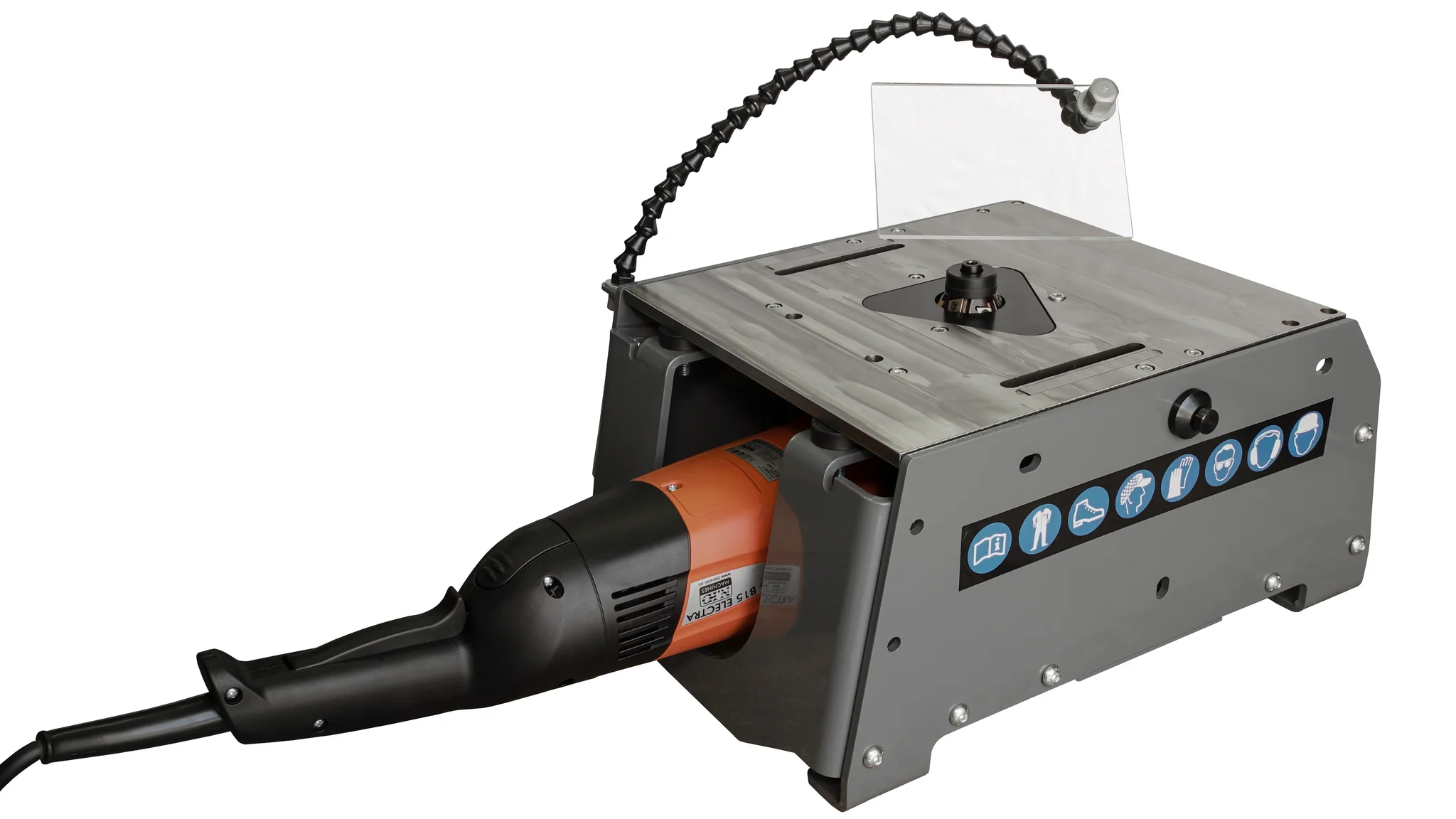

Dock station B-Dock + KFK15 ELECTRA set
– Edge rounding function, beveling of pipes
– High efficiency motor manufactured by FEIN POWER TOOLS

(Maximum bevel width 5 mm / 0.2 in.)

Dock station B-Dock enables the KFK15 to be used stationary.
It is deigned for beveling small workpieces which would be hard or impossible to clamp and bevel the standard way.
The system retains all advantages of the hand-held machine KFK15.
The B-Dock system makes it possible to bevel irregular shapes, straight workpieces and holes.
Radiuses edges are also possible with the radius milling head.
Specialty guide attachments and an easy, vertical worktable adjustment allow for beveling of pipe and tube.
By purchasing the set B-Dock + B15 Electra you are getting a universal beveling system.
The B15 Electra can be used independently from the B-Dock as a hand-held beveling machine.

• Tilting table for easy attachment of KFK15
• Vertical position of the table for convenient pipe beveling
• Straight edge and pipe guide attachments included in the price
• Adjustable protection shield increases work safety
• Robust design insures precision beveling and durability of the B-Dock
• The Hardox work sufrace is wear resistant
• Light weight system is easy to transport
• Can be used with KFK10 or KFK15 machines
• Manufactured in Czech Republic

B15 ELECTRA

(Maximum bevel width 15 mm / 0.6 in.)Designed for bevelling and deburring workpieces, internal and external radiuses and holes.
Specially designed for producing bevels and welding preparation.
Powerful electric drive for extreme loads.

• Scale for accurate bevel size adjustment.
• For bevelling and deburring steel, aluminium and other materials.
• Replaceable head for changing bevel angle.
• Handheld powerful equipment.
• Swivelling ergonomic handle.
• Edge rounding function, preparation before surface treatment.
• Manufactured in Czech Republic, with a high performance German manufactured the motor.

Technical data:

• Max. bevel width B-Dock + KFK15:

0 to 5 mm / 0 to 0.2 in

• Max. bevel width KFK15:

0 to 15 mm / 0 to 0.6 in < 400 MPa / 58 015 PSI
0 to 8 mm / 0 to 0.3 in > 400 MPa / 58 015 PSI

• Bevel angle:

replaceable head 0° / 30° / 37,5° / 45° / 50° / 60° – other angles on demand

• Rounding Radius:

R 2,5 mm / R 3,5 mm / R 4 mm
R 0.1 in / R 0.14 in / R 0.16 in

• Motor: 2.500 W / 2.000 W
• Speed:6600 RPM
• Feeding: manual
• Weight: 9,5 kg / 20.9 lb
• Number of cutting inserts: 6 pcs
• Dimensions: 443 x 368 x 220 mm / 17.5 x 14.5 x 8.7 in

Included in the price:

• Dock station B-Dock
• Beveling system KFK15 without milling head
• Packet in a cardboard
• Operating tools
• User manual
