Description

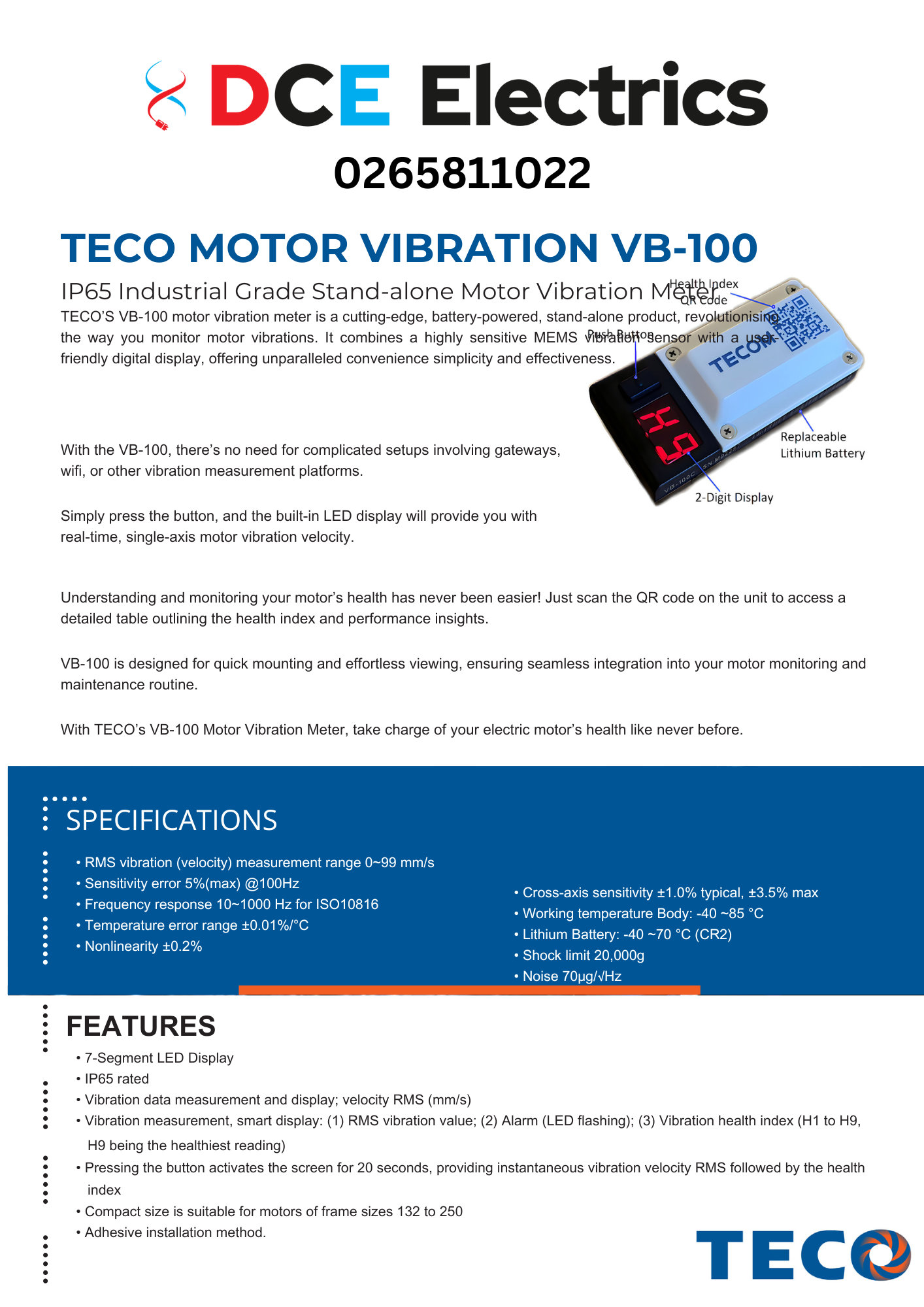

TECO MOTOR VIBRATION VB-100
IP65 Industrial Grade Stand-alone Motor Vibration Meter
TECO’S VB-100 motor vibration meter is a cutting-edge, battery-powered, stand-alone product, revolutionising the way you monitor motor vibrations. It combines a highly sensitive MEMS vibration sensor with a user-friendly digital display, offering unparalleled convenience simplicity and effectiveness.
With the VB-100, there’s no need for complicated setups involving gateways, wifi, or other vibration measurement platforms.
Simply press the button, and the built-in LED display will provide you with real-time, single-axis motor vibration velocity.
Understanding and monitoring your motor’s health has never been easier! Just scan the QR code on the unit to access a detailed table outlining the health index and performance insights. VB-100 is designed for quick mounting and effortless viewing, ensuring seamless integration into your motor monitoring and maintenance routine.
With TECO’s VB-100 Motor Vibration Meter, take charge of your electric motor’s health like never before
FEATURES
7-Segment LED Display
• IP65 rated
• Vibration data measurement and display; velocity RMS (mm/s)
• Vibration measurement, smart display: (1) RMS vibration value; (2) Alarm (LED flashing); (3) Vibration health index (H1 to H9, H9 being the healthiest reading)
• Pressing the button activates the screen for 20 seconds, providing instantaneous vibration velocity RMS followed by the health index
• Compact size is suitable for motors of frame sizes 132 to 250
• Adhesive installation method.
SPECIFICATIONS
• RMS vibration (velocity) measurement range 0~99 mm/s
• Sensitivity error 5%(max) @100Hz
• Frequency response 10~1000 Hz for ISO10816
• Temperature error range ±0.01%/°C
• Nonlinearity ±0.2%
• Cross-axis sensitivity ±1.0% typical, ±3.5% max
• Working temperature Body: -40 ~85 °C
• Lithium Battery: -40 ~70 °C (CR2)
• Shock limit 20,000g
• Noise 70μg/√Hz

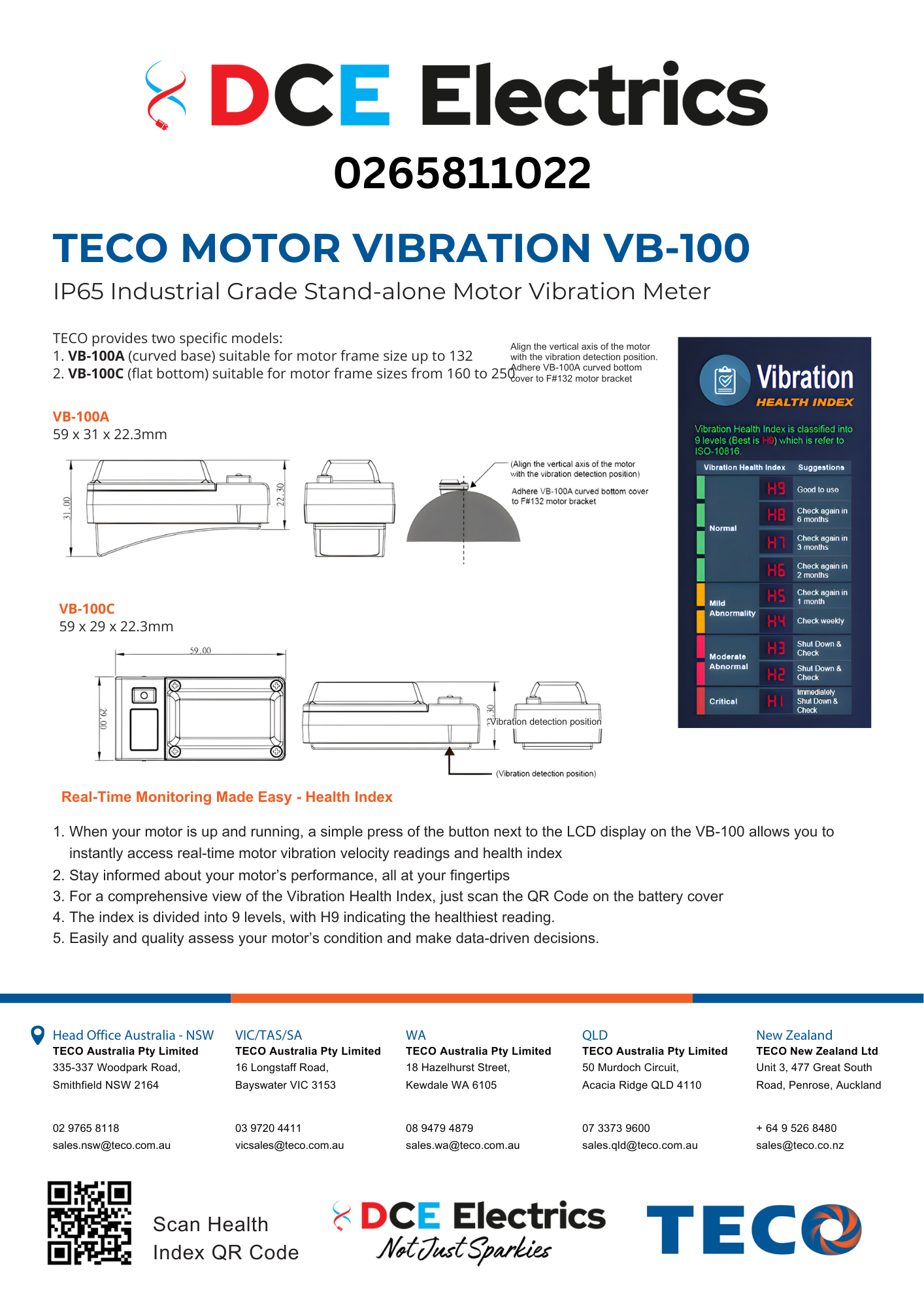

Real-Time Monitoring Made Easy – Health Index
- When your motor is up and running, a simple press of the button next to the LCD display on the VB-100 allows you to instantly access real-time motor vibration velocity readings and health index
- Stay informed about your motor’s performance, all at your fingertips
- For a comprehensive view of the Vibration Health Index, just scan the QR Code on the battery cover
- The index is divided into 9 levels, with H9 indicating the healthiest reading.
- Easily and quality assess your motor’s condition and make data-driven decisions.
