Description

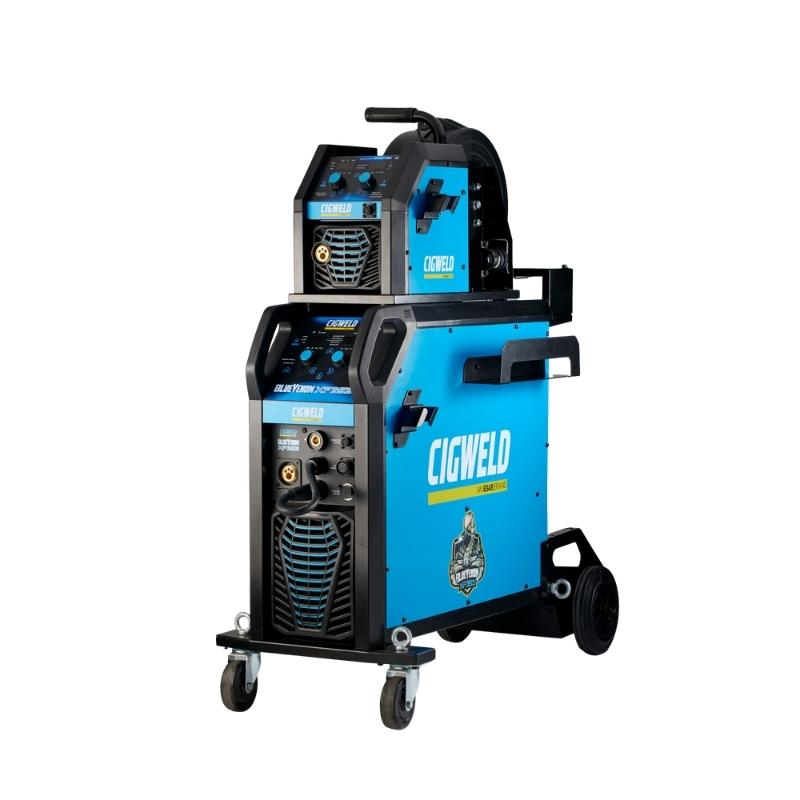

CIGWELD BLUEVENOM XF353 INVERTER WELDER 3 PHASE 400/415V MIG/STICK/TIG W1400353
The new BlueVENOM™ XF353 is a 3in1 multi-process welding inverter that has been specifically engineered to be narrower in size for easy access in tight and constrained areas but also as a modular arc station! As a compact unit you will have access to Xtra Functions that allows the machine to be used for standard MIG / STICK / DC Lift-TIG processes, or as a Synergic MIG with Plate Thickness Selection as standard.
Specifications
Power Supply: 415V
Plug Type: Not Fitted
Welding Process: MIG, MIG PULSE, STICK, TIG
Material Thickness MIG: 0.6-16.0mm
Usage: Industrial
Material Type: Mild Steel, Aluminium, Bronze, Stainless Steel
Additional Features: Push Pull Gun Compatible, Spool Gun Compatible
Material Thickness STICK: 2.0-25.0mm
Material Thickness TIG: 1.0-16.0mm
Pulse Capable: Yes
Duty cycle: MIG: 350A @ 40%, STICK: 300A @ 40%, TIG: 350A @ 40%
Warranty 3 Years + 6 months Extended Warranty
Number of Phases: Three Phase
Generator Requirement: 16.0kVa
Dimensions Power Source: 1075 x 460 x 865mm
Pulse Capable MIG: Yes
Pulse Capable TIG: No
Pulse Capable STICK: No
Includes:
BlueVenom XF353 Power Source
MIG Gun BZ36 “Style”, 4m, Euro
Work Clamp 3OOA with 4m Lead
Twistlock Electrode Holder 4OOA with 4m Lead
Feed Rolls: O.9/1.2mm V Groove (fitted), 1.O/1.2mm U Groove, 0.9/1.2mm Gasless Knurled
Gas Regulator/Flowmeter
Quick Connect Gas Hose 3m
Operating Manual
