Description

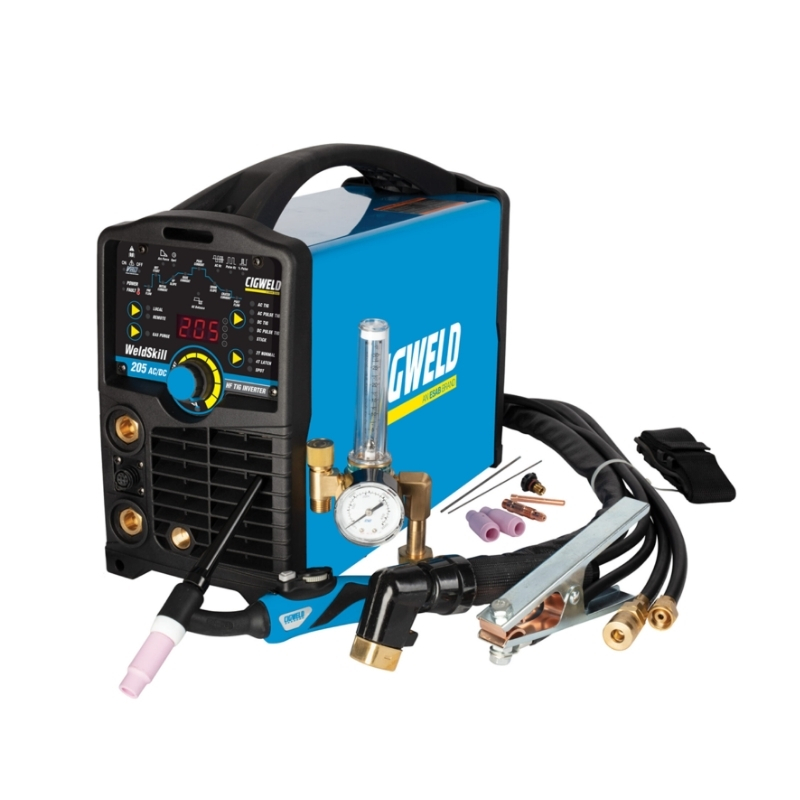

CIGWELD WELDSKILL 205A AC/DC TIG – 160A STICK WELDER SUITABLE SUITABLE FOR ALL METALS INCLUDING ALUMINIUM SINGLE PHASE 240V 15A W1008205
The CIGWELD WeldSkill 205 AC/DC TIG Welder combines professional performance with true portability.
Built on the success of its predecessor, this latest model packs the same robust power and feature set into a smaller, lighter 12kg inverter, making it ideal for tradespeople and serious DIY users who need reliability without compromise.
Compact, durable, and IP23S rated, it’s designed for both indoor and outdoor use — from light fabrication and workshop repairs to stainless steel and aluminium welding.
Simply plug it into a 15 Amp 240V outlet, and you’re ready to weld with confidence.
P/N: W1008205
Dual-Process Performance
High-frequency AC/DC TIG (GTAW) and Stick (MMAW) welding in one versatile, digitally controlled machine.
Specifications
Power Supply: 240V
Plug Type: 15A
Welding Process: AC HF TIG, DC HF TIG, PULSE TIG, STICK
Usage: Trade
Material Type: Mild Steel, Aluminium, Bronze, Stainless Steel
Additional Features: AC TIG, DC TIG, HF Start, Pulse
Material Thickness STICK: Up to 10mm
Material Thickness TIG: Up to 8mm
Pulse Capable: Yes
Duty cycle STICK: 160A @ 20%, TIG: 205A @ 20%
Warranty: 3 Years + 6 months Extended Warranty
Generator Requirement: 10.0kVa
Dimensions Power Source: 324 x 176 x 430mm
Pulse Capable MIG:No
Pulse Capable TIG: Yes
Pulse Capable STICK: No
