Description

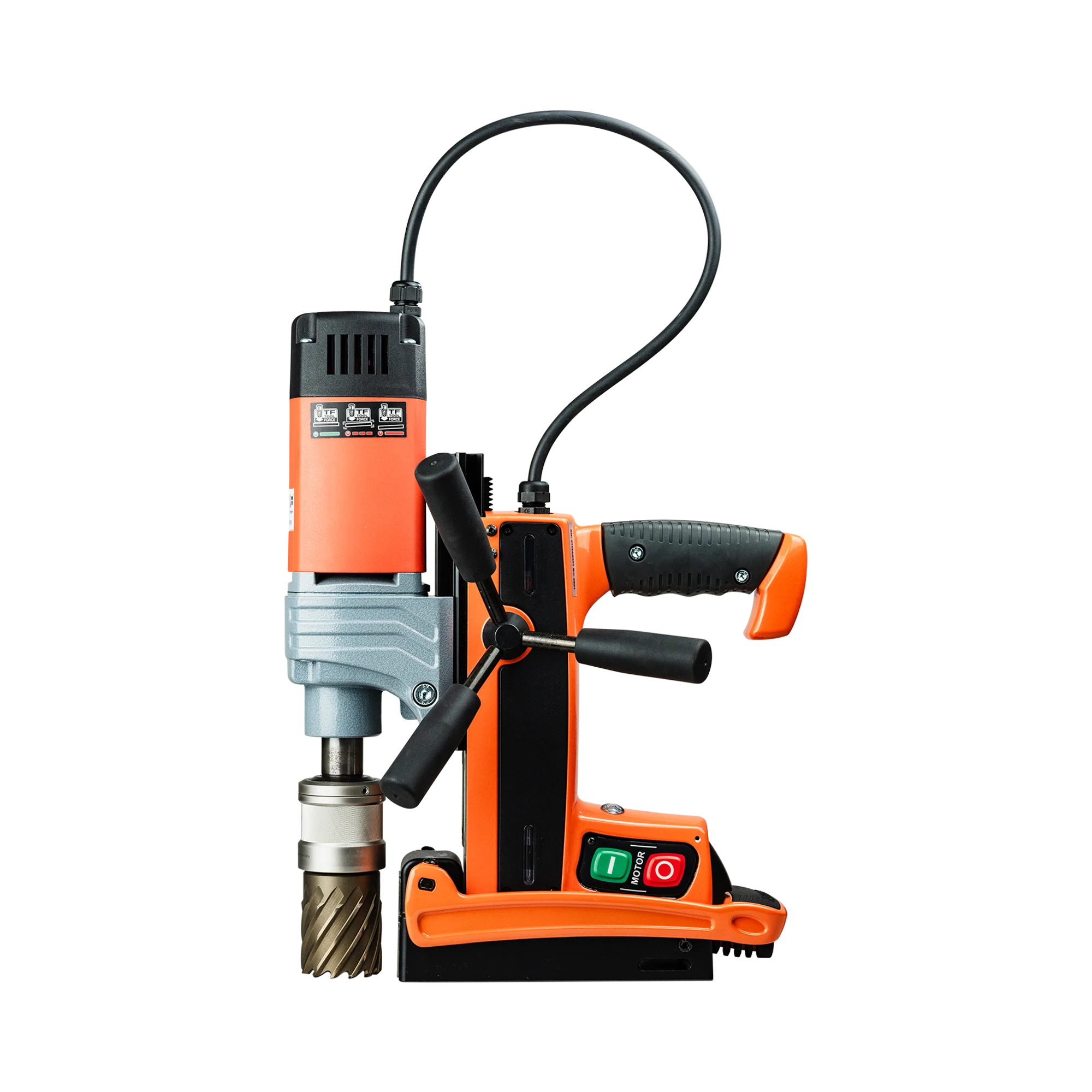

Magnex Drill 40 features a powerful permanent magnet, ideal for a wide range of steel with a minimum thickness of 1.6mm, that requires no power supply. It’s also wonderfully lightweight and compact, fitting 19mm Weldon shanks, and has double dove-tailed height adjustment for drill chucks. Made in Germany
- Powerful permanent magnet – doesn’t need a power supply
- Very light and compact
- Smooth start motor with overload protection and emergency stop
- Stepless adjustment slides
- Self-adjustment guides
- Soft touch grips
- Membrane keyboard
- Quick-change chuck
- 105mm stroke
- Suits 19mm Weldon shanks
- Double dove-tailed height-adjustment for using drill chucks
- Ergonomic design
- Solid brass guides
| Drill Features and Specifications | |
| Core Drill Dimensions | 12.0-40.0mm |
| Cutting Depth | 50.0mm |
| Twist Drill | 1.0-13.0mm |
| Counter-Boring | 10.0-40.0mm |
| Arbors | Quick-Release Chuck |
| Stroke | 105mm |
| Height Adjustment | 80mm |
| Gearbox-On-Load Speed | 450rpm |
| Power Consumption | 1,100W |
| Voltage | 230V 50/60Hz |
| Tool Force (10mm)/Magnetic Adhesion Strength | 2,800N/17,000N |
| Tool Force (6mm S235) | 2,300N |
| Magnetic Base | 72×190mm |
| Weight | 9.9Kg |
