ITM AUTO FEED PORTABLE BEVELLING MACHINE WA-ABM30

Original price was: $20,995.00.Current price is: $19,999.00.

Description

(-60 TO +60 DEGREE), MAX BEVEL WIDTH 30MM

FEATURES

The ABM-30 portable bevelling machine performs auto feed beveling on steel plates on top, face and bottom edges.
The beveller needs no track to move along steel plate to produce accurate high-quality double-side bevels without thermal distortion or creation of heat affected zone on plate thickness range 8 – 60mm.
The ABM-30 features an infinitely adjustable bevel angle between -70° and +70° and is capable of producing bevels up to 30mm wide.
It also allows for facing in both directions with the milling head depth of 1mm.

  • Needs no track to travel in both directions with feed speed up to 2m/min.
  • 4 Wheels feed drive eliminates hard physical work of the operator.
  • Produces double-side bevels without having to flip the plate enhancing safety and reducing material handling time and expense.
  • Edge to edge working range.
  • Semi-automatic feed stop at end of the metal sheet.
  • Variable spindle speed.
  • Bevel width up to 30mm (1-3/16″).
  • Variable angle -70° to +70°.
  • Max. plate thickness up to 60mm.
  • Innovative, robust chip protection solution.

SPECIFICATIONS

  • Voltage: 1~ 200-240 V, 50/60 Hz
  • Power: 2200W
  • Spindle Rotational Speed (Without Load): 1800 – 5850rpm
  • Feed Speed: 0 – 2m/min
  • Bevel Angle (ß, Fig. 1): From -70° to 70°
  • Maximum Bevel Width (b, Fig. 1): 30mm
  • Sheet Thickness: 8 – 60mm
  • Required Ambient Temperature: 5 – 40°C
  • Weight: 43kg

DESCRIPTION

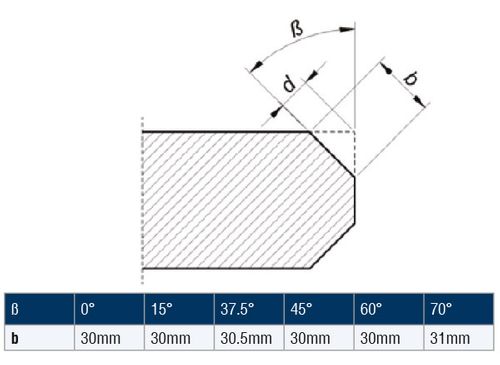

Bevelling Measurements:

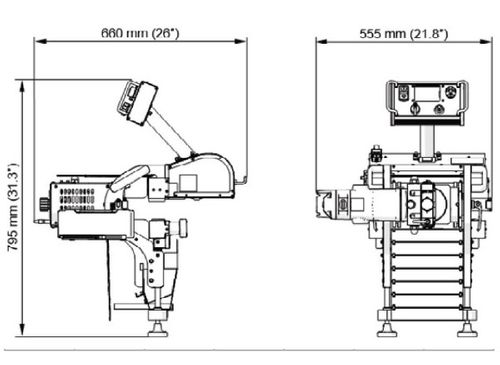

Machine Dimensions:

Features:

Control Panel

  • Feed direction indication
  • Material detection
  • Bar graph for motor load illustration
  • Visual warning signals

Operating Methods

  • Top bevelling
  • Bottom bevelling
  • Facing-off

Additional information

Weight 50 kg
Dimensions 80 × 60 × 80 cm
