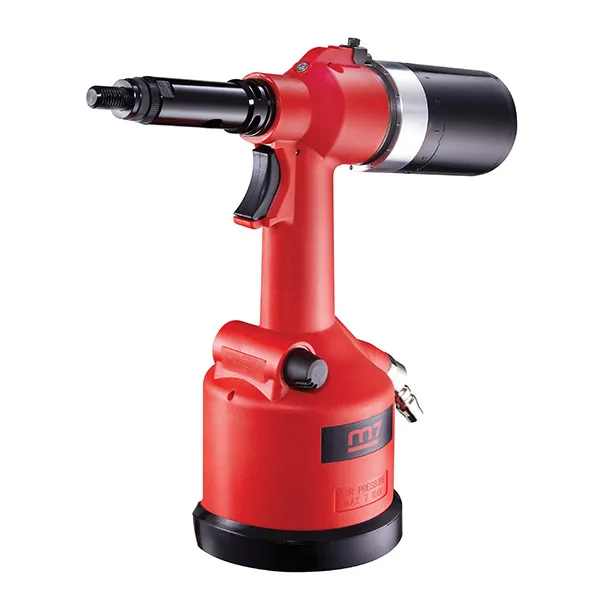

Description
Features
Automatic mechanism to quickly push up and pull back rivet.
The thickness of the pull nut can be adjusted quickly.
Net weight: 2.46kg
Comes with mandrel sizes: M3, M4, M5, M6, M8, M10 & M12
Specifications
Traction Power: 4300lbf
Stroke Length: 7.0mm
Capacity: Steel & aluminium M3 – M12
Capacity:Stainless steel M3 – M10
Comes with mandrel sizes: M3, M4, M5, M6, M8, M10 & M12
Air Requirements: PSI / 90 PSI / 6.3Bar
Air Inlet: 1/4″”
Net Weight: 2.8kg
Sound Pressure: 80 dBA
Vibration Level: 1.2m/s²
Overall Length: 310mm
