Description
C-HP Series – 240V
Built in Australia.
2 stage “high pressure” pump.
For applications such as truck tyre fitting, bead blasting & inflation, manufacturing and much more.
- Rated to AS4637.
- 2 stage, up to 160psi for high pressure applications.
- Heavy duty “close grain” cast iron pump.
- Featuring highly efficient reed valves.
- Fully balanced flywheel with large cooling blades.
- Techtop motor with overload protection.
- Supported by Techtop National Service Network.
- Capacitor start/Capacitor run.
- Filter/regulator included.
- 2 x regulated outlets.
- 1 x unregulated high pressure tank outlet.
- Guarding meets Occupational Heath & Safety Standards.
- Tank meets Australian Standard AS1210.
- Full range of spare parts available.
- Warranty.
- 5 years on pump*
- 5 years on tank*
- 1 year on motor & fittings*
| Product Code | Displacement | Free Air Delivery | Motor | Tank | Power Supply | Max. Pressure | Cylinders | ||
|---|---|---|---|---|---|---|---|---|---|
| CFM | L/min | CFM | L/min | HP | Litres | psi | |||
| C16-HP | 14.5 | 410 | 11.6 | 328 | 3.2 | 70 | 15 A | 160 | W-Triple |
| C16L-HP | 14.5 | 410 | 11.6 | 328 | 3.2 | 125 | 15 A | 160 | W-Triple |

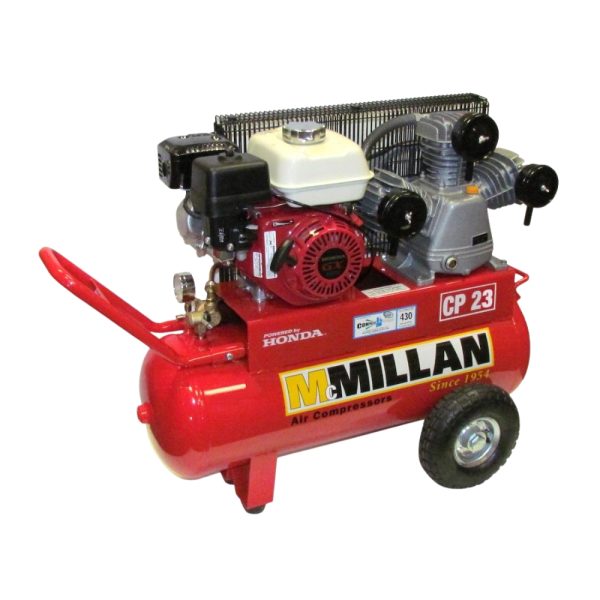

| CP20-HP (Petrol) | 15.0 | 424 | 12.0 | 340 | 6.5 | 70 | GX200 | 160 | W-Triple |
| Weight | Dimensions | ||
|---|---|---|---|
| Kgs | Width | Length | Height |
| 98 | 480 | 1100 | 820 |
| 117 | 400 | 1450 | 900 |
| 100 | 480 | 1100 | 900 |
