Description

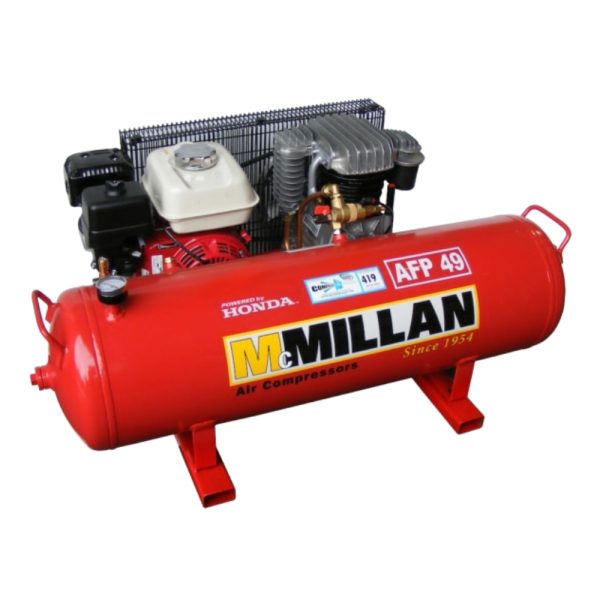

UTE Pack Series
Built in Australia.
Featuring the world famous ABAC pump, as well as cast iron pump options, coupled with Honda petrol engines gives us a range of UTE style compressors that provides the quality & reliability required in this portable market.
- Rated to AS4637.
- Cast iron cylinder and crankshaft.
- Two stage, 160psi on high pressure models.
- Honda petrol engine.
- Oil alert engine shut down.
- Auto idle control.
- increase fuel efficiency.
- increase in compressor life.
- reduction in noise and temperature.
- cooler pump operation.
- Tanks meet Australian Standard AS1210.
- Honda & Techtop National Service Network.
- Warranty.
- 3 years on pump, tank & fittings. (excluding pump to suit AFP70 – 1 year)
- 3 years on Honda engine.
- 1 year on Techtop electric motor.
- NEW Stationary UTE mount model (CP23-S) is also available with ABAC upright pump option.
| Product Code | Displacement | Free Air Delivery | Motor | Tank | Pump Model | Cylinders / Stages | Max. Pressure | ||
|---|---|---|---|---|---|---|---|---|---|
| CFM | L/min | CFM | L/min | HP | Litres | psi | |||
| AFP 38-UTE | 16.8 | 475 | 12.6 | 400 | 6.5 | 50 | B3800 | 2/1 Stage | 140 |
| AFP 49-UTE | 18.0 | 509 | 14.8 | 419 | 6.5 | 70 | B4900 | 2/2 Stage | 160 |
| AFP 70-UTE | 42.7 | 1208 | 34.2 | 968 | 13.0 | 70 | B7000 | 2/2 Stage | 160 |
| CP 23-S | 22.5 | 636 | 15.2 | 430 | 6.5 | 60 | LB 40 | 3/1 Stage | 140 |
| AF 12-UTE | 11.7 | 331 | 8.4 | 238 | 2.2/240V | 50 | B2800 | 2/1 Stage | 140 |
| Weight | Dimensions | ||
|---|---|---|---|
| Kgs | Width | Length | Height |
| 75 | 720 | 800 | 520 |
| 102 | 730 | 1150 | 550 |
| 148 | 900 | 1030 | 760 |
| 91 | 400 | 950 | 800 |
| 70 | 730 | 780 | 460 |
