Description

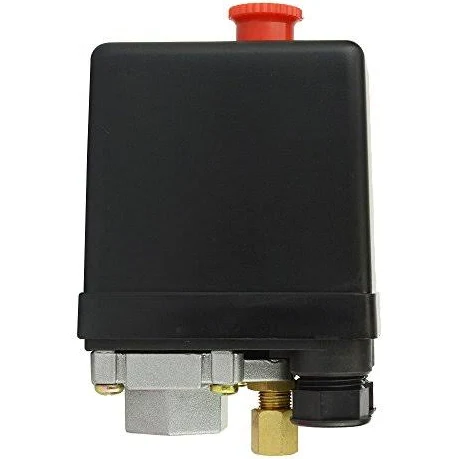

Style: Standard type 240 Volt compressor switch with adjustable pressure control and fast on /off button
Characteristics:
Electrical: Max 240V, 20 Amps
Pressure: Max 175 Psi (12 Bar)
Fittings: 1/4″ BSP female air line entry. Separate cable entry & exit with gland nuts and cable grips, 6mm brass gas gland nut & olive for 6 mm unloader line,
Overall Dimensions: 127 x 81 x 51mm
Materials:
Pressure Chamber: Cast Aluminium
Case: Self extinguishing plastic.
Standards: TUV & CE
Typical Applications: 240 Volt Compressor start and run switching with operating pressure adjustment giving long life and reliability
