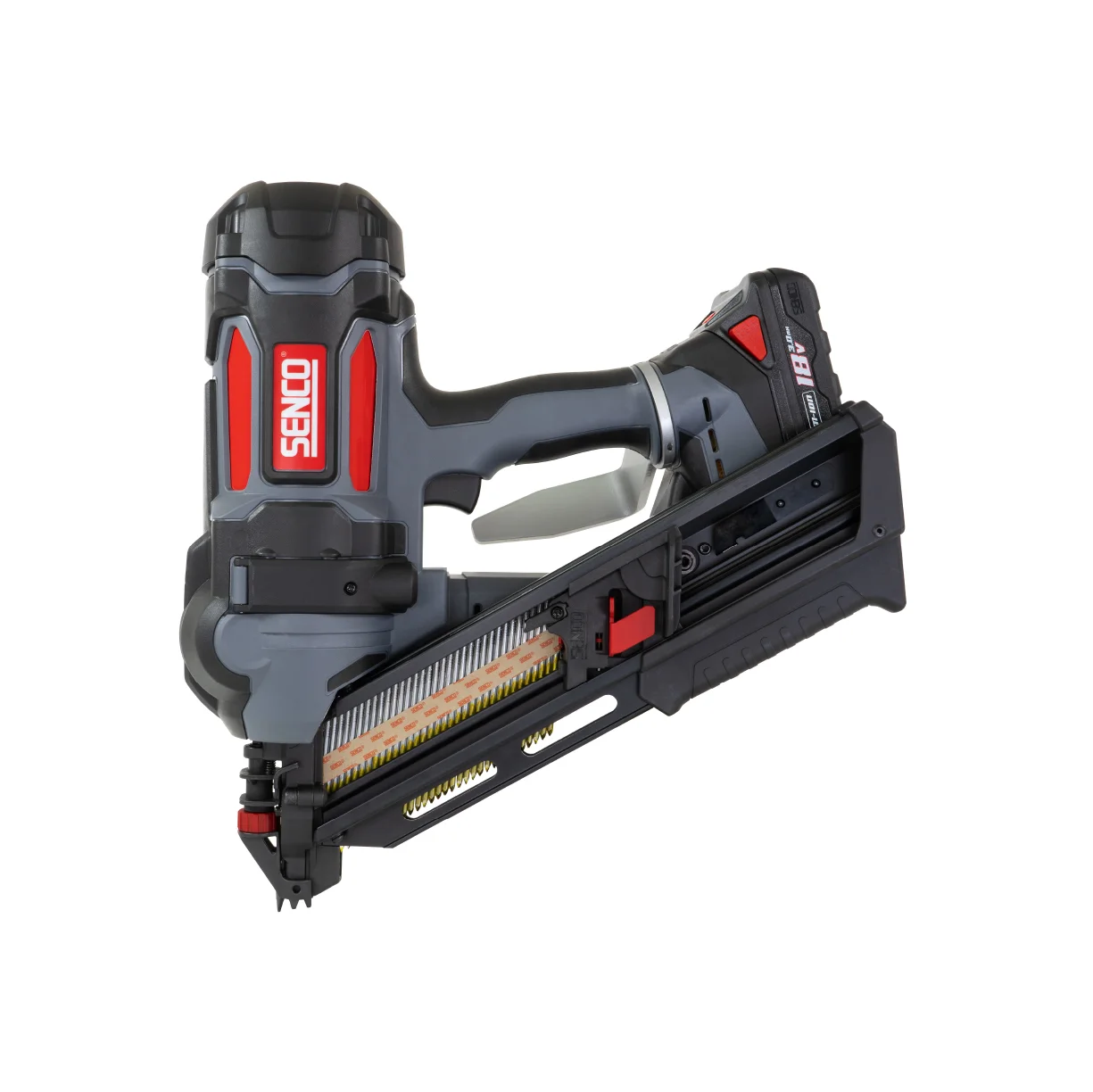

3-1/2” Cordless Paper Tape Framing Nailer
- Fusion cordless air-power technology
- No hose, compressor or fuel cell
- Pneumatic-like response with no ramp-up time
- Jam reduction intelligence for fewer nail jams
- Dry fire lockout
Combining true pneumatic feel, speed and power with cordless convenience, the F-35XP drives up to 3-1/2” x .148” framing nails into the hardest substrates without the expense and hassle of fuel cells. With its robust design and durable construction, the F-35XP is ideal for professional framers and contractors.
Features
1 FUSION CORDLESS AIR-POWER TECHNOLOGY
Operates like a true pneumatic with no ramp-up time, providing the power to sink nails completely into hard substrates including engineered lumber
2 PRESSURE RELIEF VALVE & REFILLABLE AIR PORT. Simplifies service repair and tool maintenance
3 BRUSHLESS MOTOR Efficient, consistent performance
4 RUGGED RAFTER HOOK Rotatable, aluminum design keeps tool secure when not in use
5 TOOL-FREE DEPTH OF DRIVE Quickly and easily sets the drive depth
6 SELECTABLE ACTUATION SWITCH Easily and safely change from sequential to bump fire modes
7 AGGRESSIVE TOENAIL SAFETY Provides extra grip for toenail applications, no-mar tip included
8 DRY FIRE LOCKOUT Reduces tool wear and indicates the need to reload fasteners
9 ALUMINUM MAGAZINE Ultra-durability for the toughest work conditions
10 ON-BOARD INDICATOR Nail jam and battery recharge notification
11 BATTERY STATUS LIGHT Quickly shows battery power level
Applications
- Framing
- Panelized construction
- Truss building
- Subflooring
- Sheathing
- Decking
- Siding
- Fencing
- Pallet and crate assembly
SPECIFICATIONS
- Item #:10G0001N
- Tool Weight:11.37 lbs (5.16 kgs)
- Height:14.375″ (366 mm)
- Length:14.00″ (356 mm)
- Width:5.50″ (140 mm)
- Warranty:5 years
- Battery:3.0Ah 18V Li-ion Battery
- Charger:80% in 30 minutes; 100% in 60 minutes
- Fasteners Per Charge:600
- Amp Draw:5
- Technology:FUSION
- Trigger Type:Selectable Actuation
- Power Source:Electric
- Capacity:60
- Power Type:Cordless
- Range:2″ – 3-1/2″
- Diameter:0.113″ – 0.148″
- Includes:(2) VB0190 3.0Ah 18V Li-Ion Batteries, Charger, No Mar Pad, Storage Bag
FASTENERS
Compatible Fastners
Type: 34° Ring Shank Paper Tape Collated Nails
Degree: 34°
Range: 2″ – 2-3/8″
Collation: 34° Angled Strip
Degree: 34°
Range: 2″ – 2-3/8″
Collation: 34° Angled Strip
Type: 34° Smooth Shank Paper Tape Collated Nails
Degree: 34°
Range: 2″ – 3-1/2″
Collation: 34° Angled Strip
Degree: 34°
Range: 2″ – 3-1/2″
Collation: 34° Angled Strip
Type: ProHead® 34° Smooth Shank Paper Tape Nails
Degree: 34°
Range: 2″ – 3-1/2″
Collation: 34° Angled Strip
Degree: 34°
Range: 2″ – 3-1/2″
Collation: 34° Angled Strip
