Description

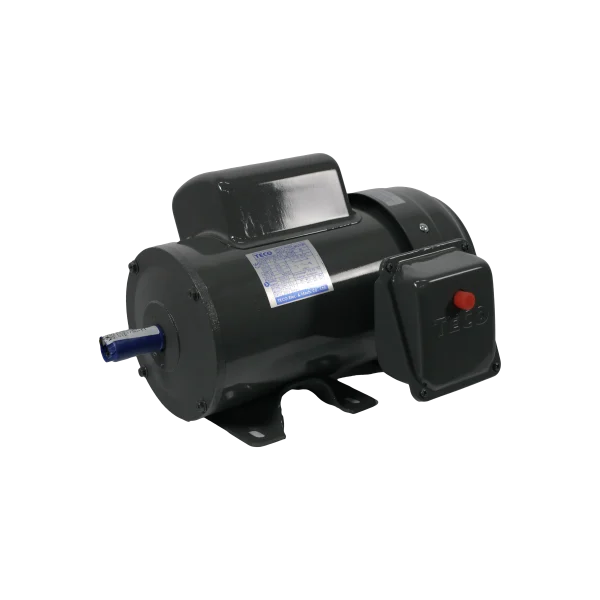

TECO ROLLED STEEL SINGLE PHASE 0.25KW BEGY-A71-14 1420RPM 4 POLE FOOT MOUNT ONLY 031/E0.25BE4X TSPEM
Motor: TECO BECY, BEGY.
Type: SCIM.
Frame: Rolled Steel up to and including 80 frame & B56, Cast Iron for 90 frame and larger.
Supply: 240 Volts Single Phase 50 Hz, motors 1.5 kW and above are 240/480 Volts.
Enclosure: TEFC IC0411.
Efficiency: N/A.
IP rating: 44.
Insulation / Temp rise: F / B.
Thermistors / Overload: Overload fitted up to and including 1.1 kW.
Warranty: 1 year.
Other:
1) CE marked.
2) TECO Standard paint system final colour TECO Grey, hammertone light green for B56 frame.
3) Prices are subject to change without notice (including any type error).
Prices are net each, ex works TECO, GST additional charge.
A) METRIC FRAME: 71 to 80 – rolled steel shell frame, 90 to 132 – cast iron frame.
2 Pole
