Description

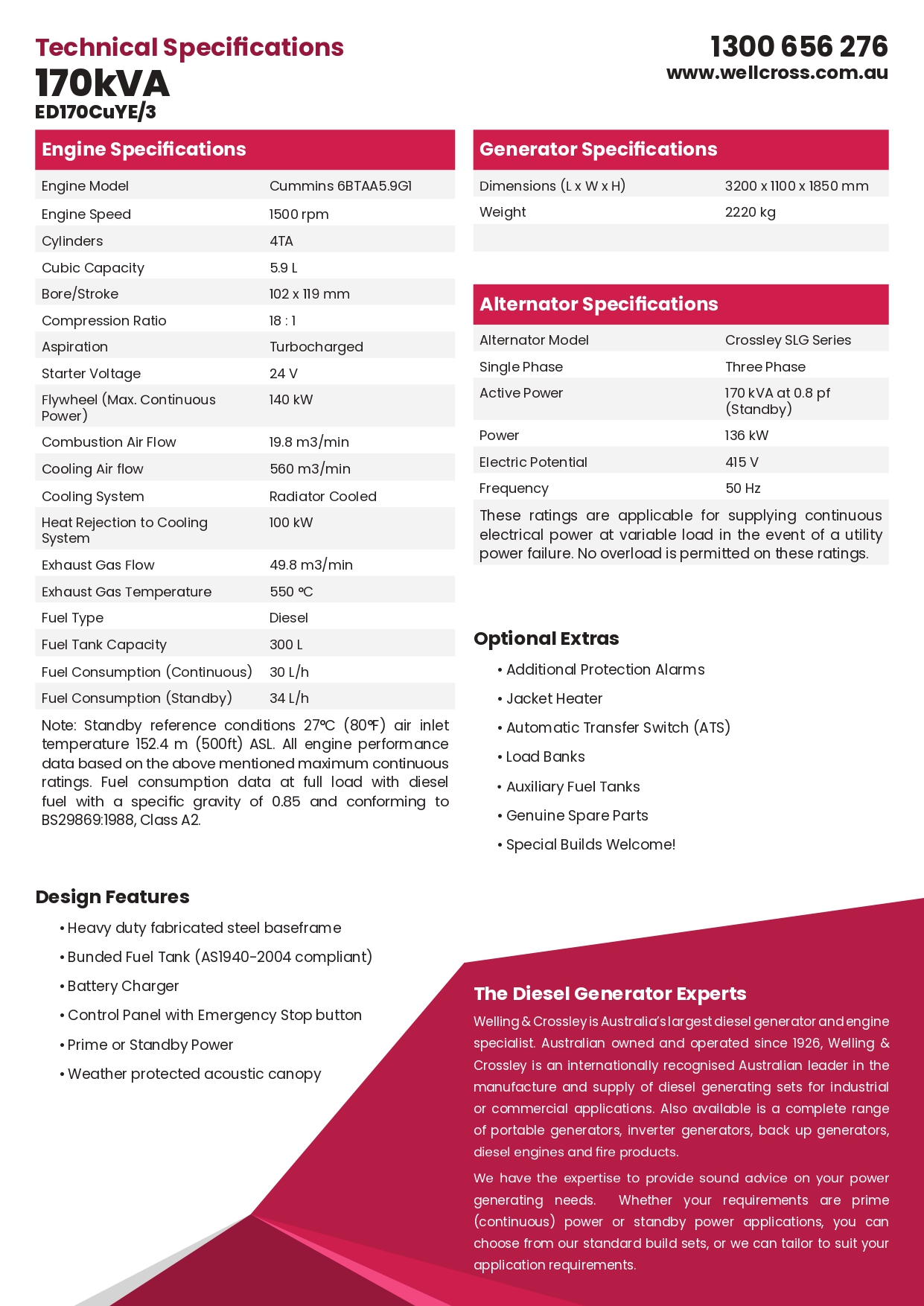

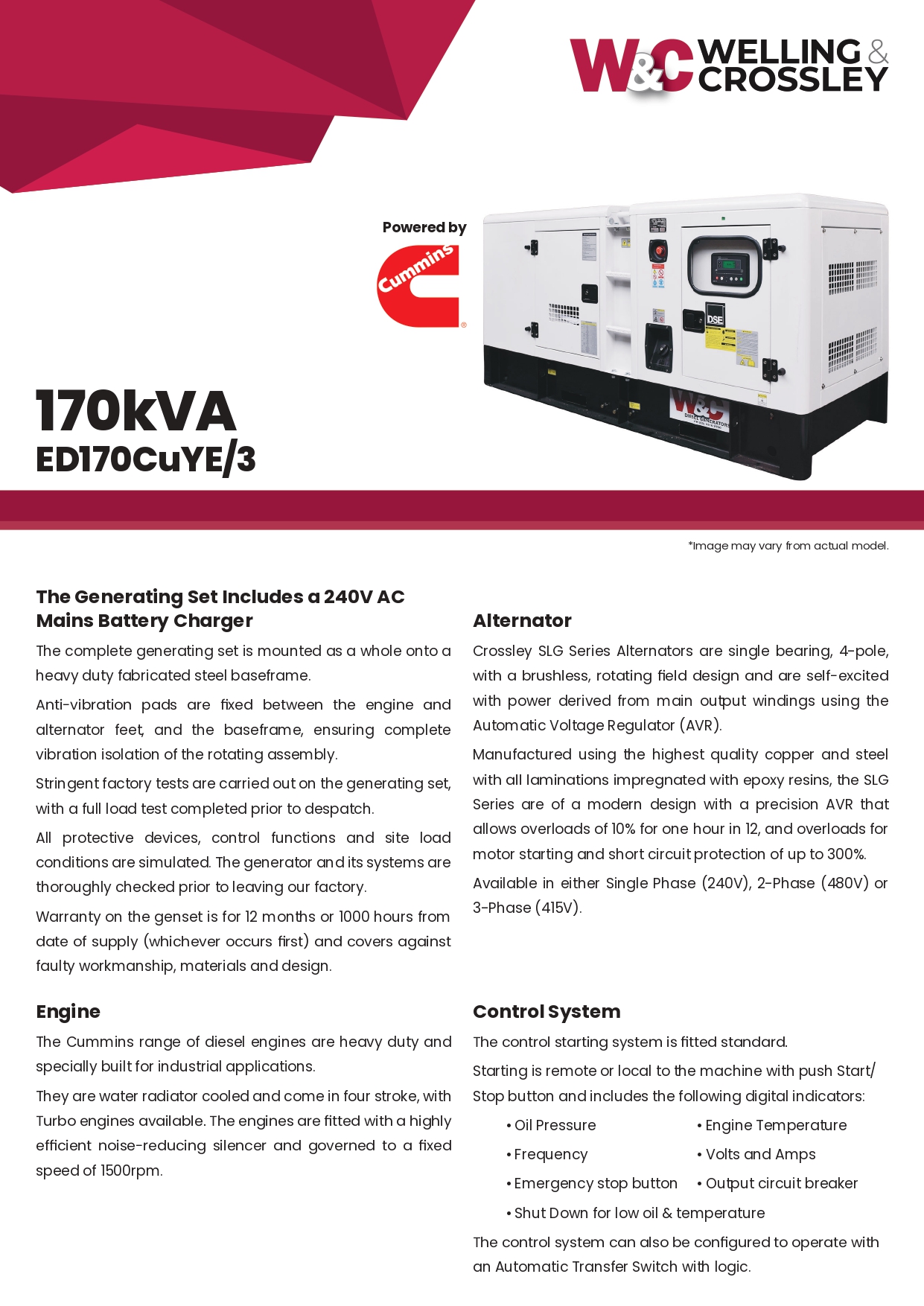

170kVA, 3 Phase, Standby Diesel Generator with Cummins Engine in Canopy Model No.: ED170CuYE/3 The Cummins powered ED170CuYE/3 is a 170kVA three phase standby diesel generator. Complete with Crossley SLG series single bearing, 4-pole, brushless alternator, remote start/stop control system, 300 litre fuel tank, weather protective acoustic canopy and Cummins engine. Welling and Crossley Cummins powered generating sets are fully integrated power generation systems that are stringently tested to provide optimum performance, reliability, and versatility for standby applications. Alternator Alternator Model: Crossley SLG Series Electric Power: Three Phase Active Rating: 170 kVA at 0.8 pf (Standby) Power: 136 kW Voltage: 415V Frequency: 50Hz Engine Engine Model: Cummins 6BTAA5.9G12 Engine Speed: 1500 rpm Cylinder No.: 4TA Cubic Capacity: 5.9 L Bore / Stroke: 102 x 119 mm Compression Ratio: 18 : 1 Aspiration: Turbocharged Starter Voltage: 24V Flywheel ( Max. Continuous Power): 140 kW Combustion Air Flow: 19.8 m³/min Cooling Air Flow: 560 m³/min Cooling System: Radiator Cooled Heat Rejection to Cooling System: 100 kW Exhaust Gas Flow: 49.8 m³/min Exhaust Gas Temperature: 550°C Fuel Type: Diesel Fuel Tank Capacity: 300 L Approx. Fuel Consumption (Continuous): 30 L/hr Approx. Fuel Consumption (Standby): 34 L/hr Generator Dimensions (L x W x H): 3200 x 1100 x 1850 mm (L x W x H) Weight: 2220 kg *Specifications are subject to change without notice
