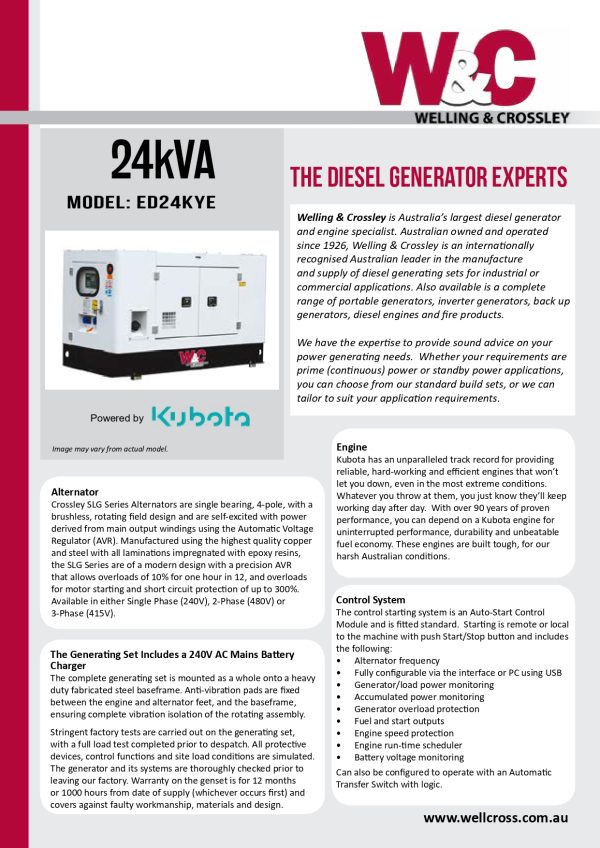

Model No.: ED24KYE

The Kubota powered ED24KYE is a 24kVA single phase standby diesel generator. Complete with Crossley SLG series single bearing, 4-pole, brushless alternator, remote start/stop control system, 90 litre fuel tank, weather protective acoustic canopy and Kubota engine. Welling and Crossley Kubota powered generating sets are fully integrated power generation systems that are stringently tested to provide optimum performance, reliability, and versatility for standby applications.

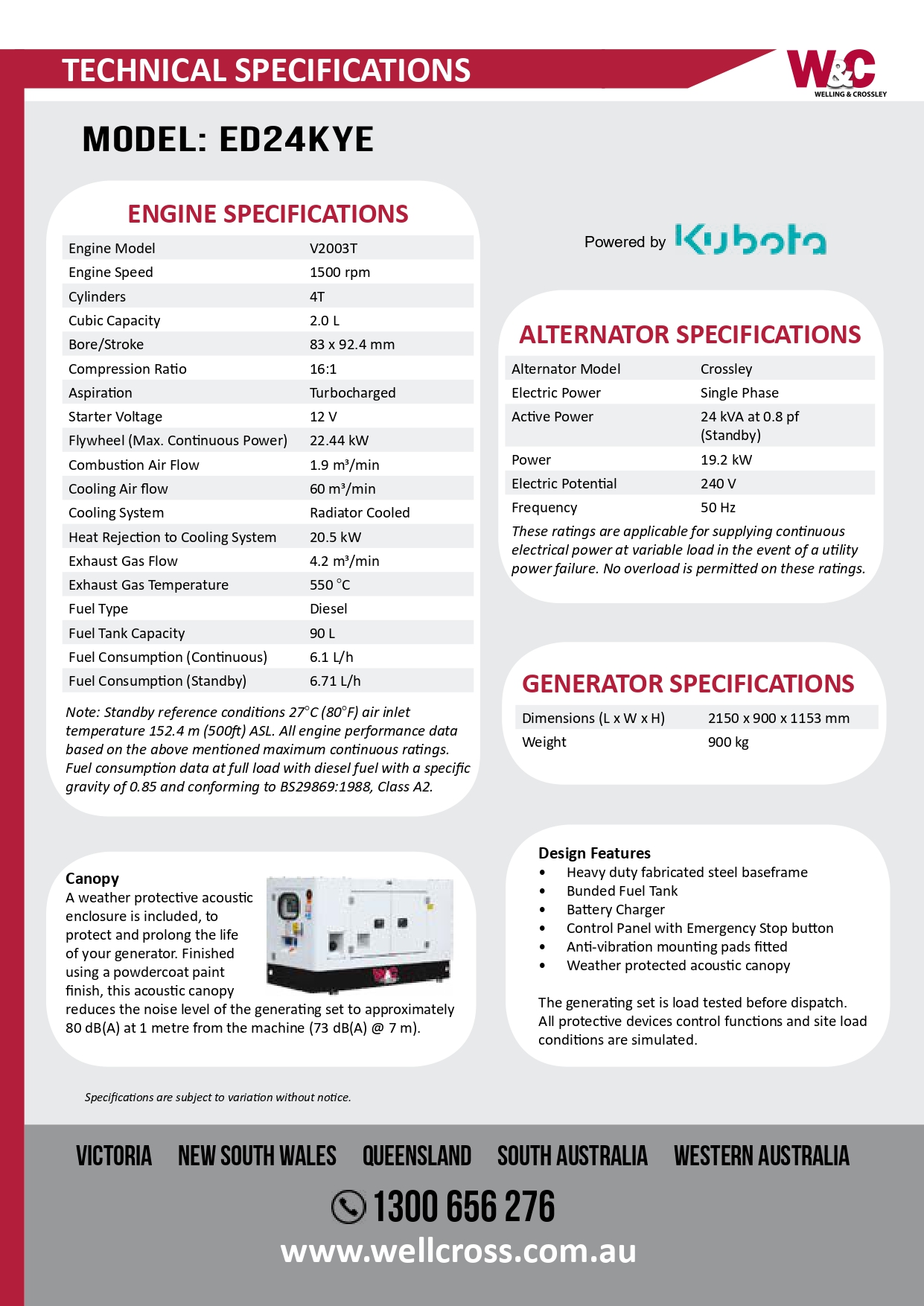

Alternator
Alternator Model: Crossley
Electric Power: Single Phase
Active Rating: 24 kVA at 0.8 pf (Standby)
Power: 19.2 kW
Voltage: 240V
Frequency: 50Hz

Engine
Engine Model: Kubota V2003T
Engine Speed: 1500 rpm
Cylinder No.: 4T
Cubic Capacity: 2.0 L
Bore / Stroke: 83 x 92.4 mm
Compression Ratio: 16 : 1
Aspiration: Turbocharged
Starter Voltage: 12V
Flywheel ( Max. Continuous Power): 22.44 kW
Combustion Air Flow: 1.9 m³/min
Cooling Air Flow: 60 m³/min
Cooling System: Radiator Cooled
Heat Rejection to Cooling System: 20.5 kW
Exhaust Gas Flow: 4.2 m³/min
Exhaust Gas Temperature: 550°C
Fuel Type: Diesel
Fuel Tank Capacity: 90 L
Approx. Fuel Consumption (Continuous): 6.1 L/hr
Approx. Fuel Consumption (Standby): 6.71 L/hr

Generator
Dimensions (L x W x H): 2150 x 900 x 1153 mm (L x W x H)
Weight: 900 kg

*Specifications are subject to change without notice
