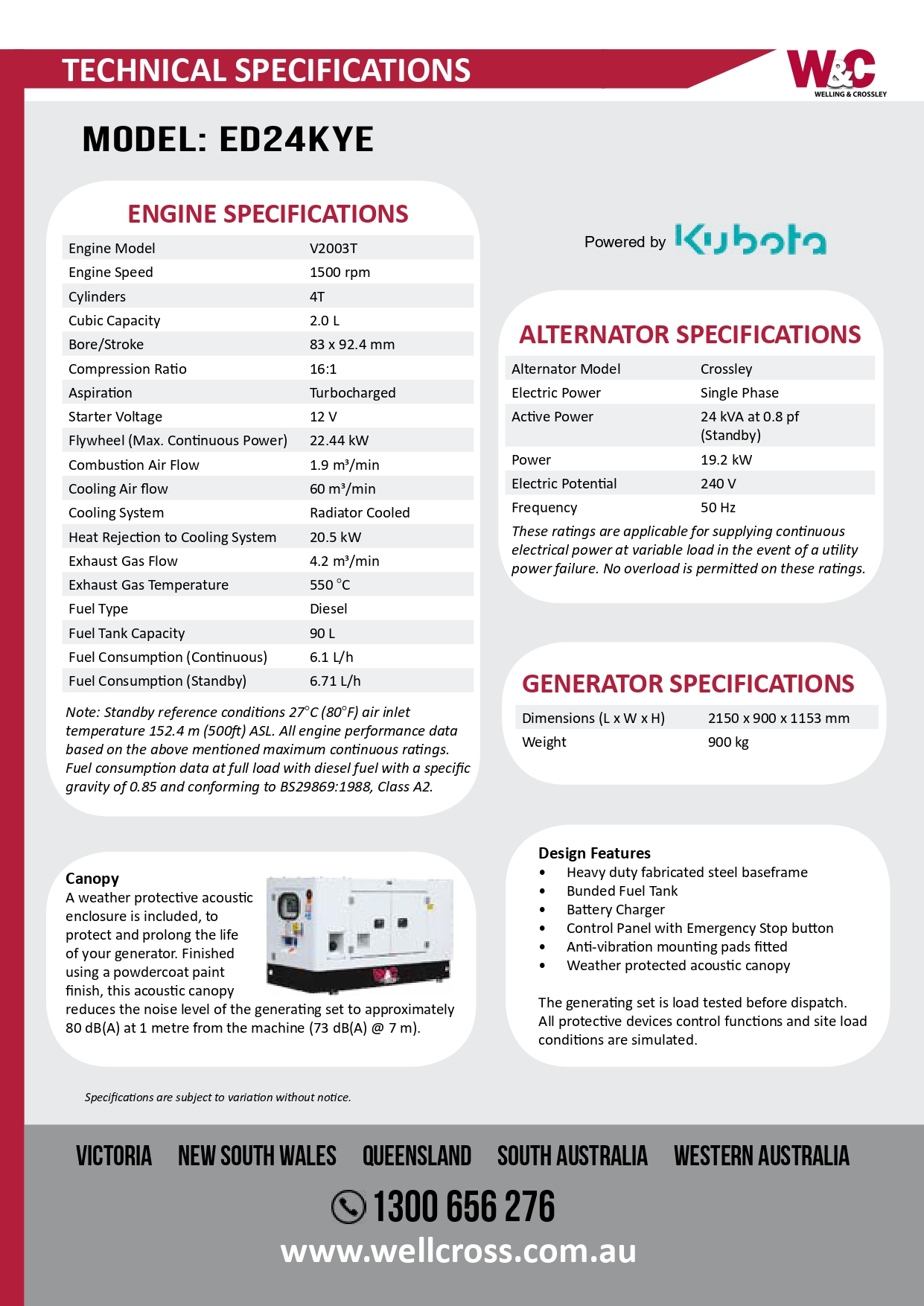

24kVA, Single Phase, Standby Diesel Generator with Kubota Engine in Canopy Model No.: ED24KYE The Kubota powered ED24KYE is a 24kVA single phase standby diesel generator. Complete with Crossley SLG series single bearing, 4-pole, brushless alternator, remote start/stop control system, 90 litre fuel tank, weather protective acoustic canopy and Kubota engine. Welling and Crossley Kubota powered generating sets are fully integrated power generation systems that are stringently tested to provide optimum performance, reliability, and versatility for standby applications. Alternator Alternator Model: Crossley Electric Power: Single Phase Active Rating: 24 kVA at 0.8 pf (Standby) Power: 19.2 kW Voltage: 240V Frequency: 50Hz Engine Engine Model: Kubota V2003T Engine Speed: 1500 rpm Cylinder No.: 4T Cubic Capacity: 2.0 L Bore / Stroke: 83 x 92.4 mm Compression Ratio: 16 : 1 Aspiration: Turbocharged Starter Voltage: 12V Flywheel ( Max. Continuous Power): 22.44 kW Combustion Air Flow: 1.9 m³/min Cooling Air Flow: 60 m³/min Cooling System: Radiator Cooled Heat Rejection to Cooling System: 20.5 kW Exhaust Gas Flow: 4.2 m³/min Exhaust Gas Temperature: 550°C Fuel Type: Diesel Fuel Tank Capacity: 90 L Approx. Fuel Consumption (Continuous): 6.1 L/hr Approx. Fuel Consumption (Standby): 6.71 L/hr Generator Dimensions (L x W x H): 2150 x 900 x 1153 mm (L x W x H) Weight: 900 kg *Specifications are subject to change without notice
