WELLING AND CROSSLEY 380KVA 3 PHASE STANDBY DIESEL GENERATOR WITH DOOSAN ENGINE 416020 ED380DSE/3 – FREIGHT QUOTED SEPARATELY

WELLING AND CROSSLEY 506KVA 3 PHASE STANDBY DIESEL GENERATOR WITH DOOSAN ENGINE 416037 ED506DSE/3 - FREIGHT QUOTED SEPARATELYWELLING AND CROSSLEY 290KVA 3 PHASE STANDBY DIESEL GENERATOR WITH DOOSAN ENGINE 421318 ED290DSE/3C - FREIGHT QUOTED SEPARATELY

Original price was: $80,850.00.Current price is: $76,000.00.

Add to wishlist
SKU: ED380DSE/3 Categories: , , , Tags: , , , , , , ,

Description

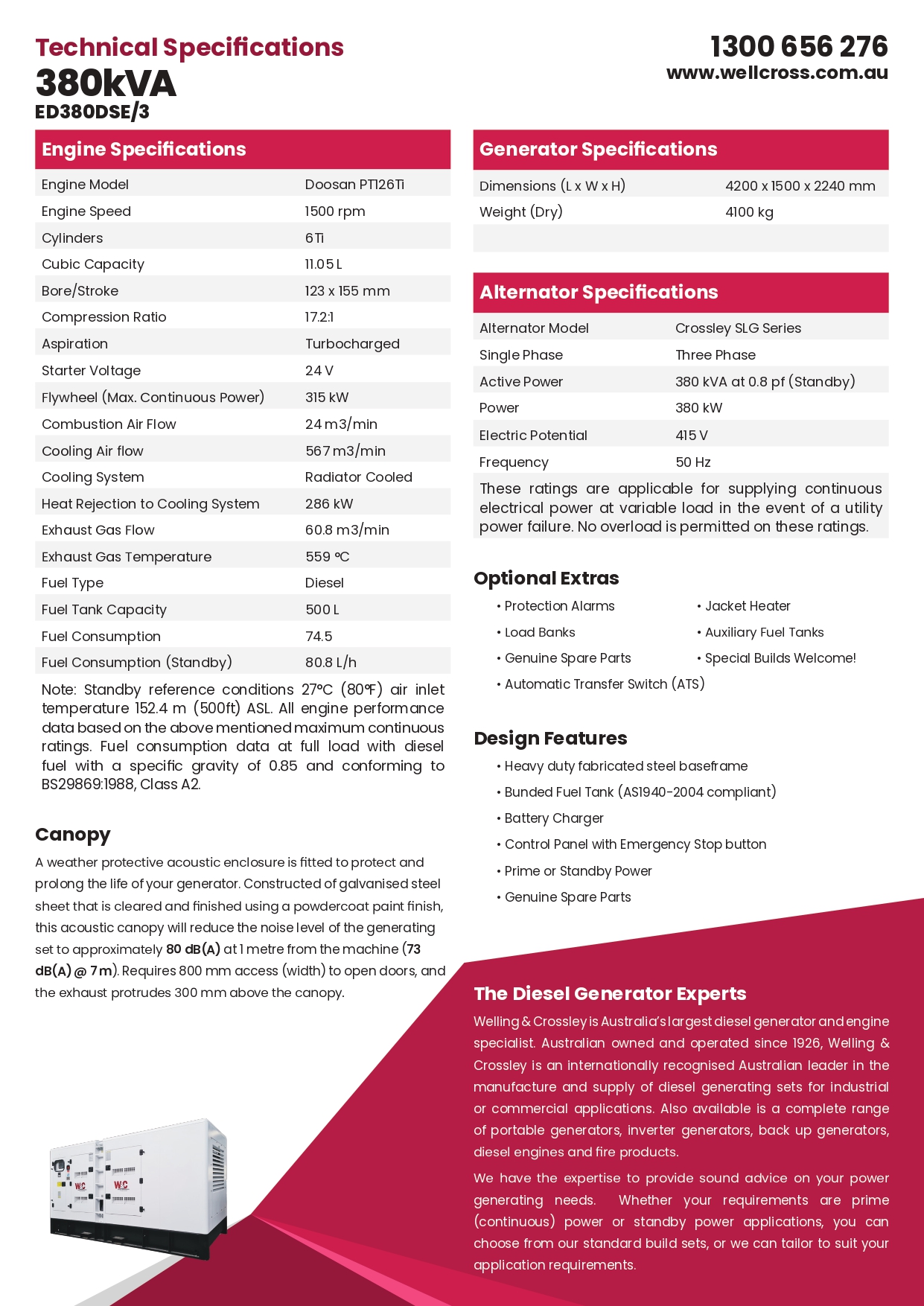

380kVA, 3 Phase, Diesel Standby Generator with Doosan Engine in Canopy

Model No.: ED380DSE/3

The Doosan powered ED380DSE/3 is a 380kVA three phase diesel generator. Complete with Crossley SLG series single bearing, 4-pole, brushless alternator, remote start/stop control system and 500 litre fuel tank. Welling and Crossley’s Doosan powered generators are fully integrated power generation systems that are stringently tested to provide optimum performance, reliability, and versatility for both stationary and prime power applications.  Weather protective acoustic canopy included.

Alternator

Alternator Model: Crossley SLG Series
Electric Power: Three Phase
Active Rating: 380 kVA at 0.8 pf (Standby)
Power: 304 kW
Electric Potential: 415V
Frequency: 50Hz

Engine

Engine Model: Doosan PT126Ti
Engine Speed: 1500 rpm
Cylinder No.: 6Ti
Cubic Capacity: 11.05 L
Bore / Stroke: 123 x 155 mm
Compression Ratio: 17.2 : 1
Aspiration: Turbocharged
Starter Voltage: 24V
Flywheel ( Max. Continuous Power): 315 kW
Combustion Air Flow: 24 m³/min
Cooling Air Flow: 567 m³/min
Cooling System: Radiator Cooled
Heat Rejection to Cooling System: 286 kW
Exhaust Gas Flow: 60.8 m³/min
Exhaust Gas Temperature: 559°C
Fuel Type: Diesel
Fuel Tank Capacity: 500 L
Approx. Fuel Consumption (Continuous): 74.5
Approx. Fuel Consumption (Standby): 80.8 L/hr

Generator

Dimensions (L x W x H): 4200 x 1500 x 2240 mm (L x W x H)
Weight (Dry): 4100 kg

*Specifications are subject to change without notice

Additional information

Weight 4100 kg
Dimensions 420 × 150 × 230 cm
