Description

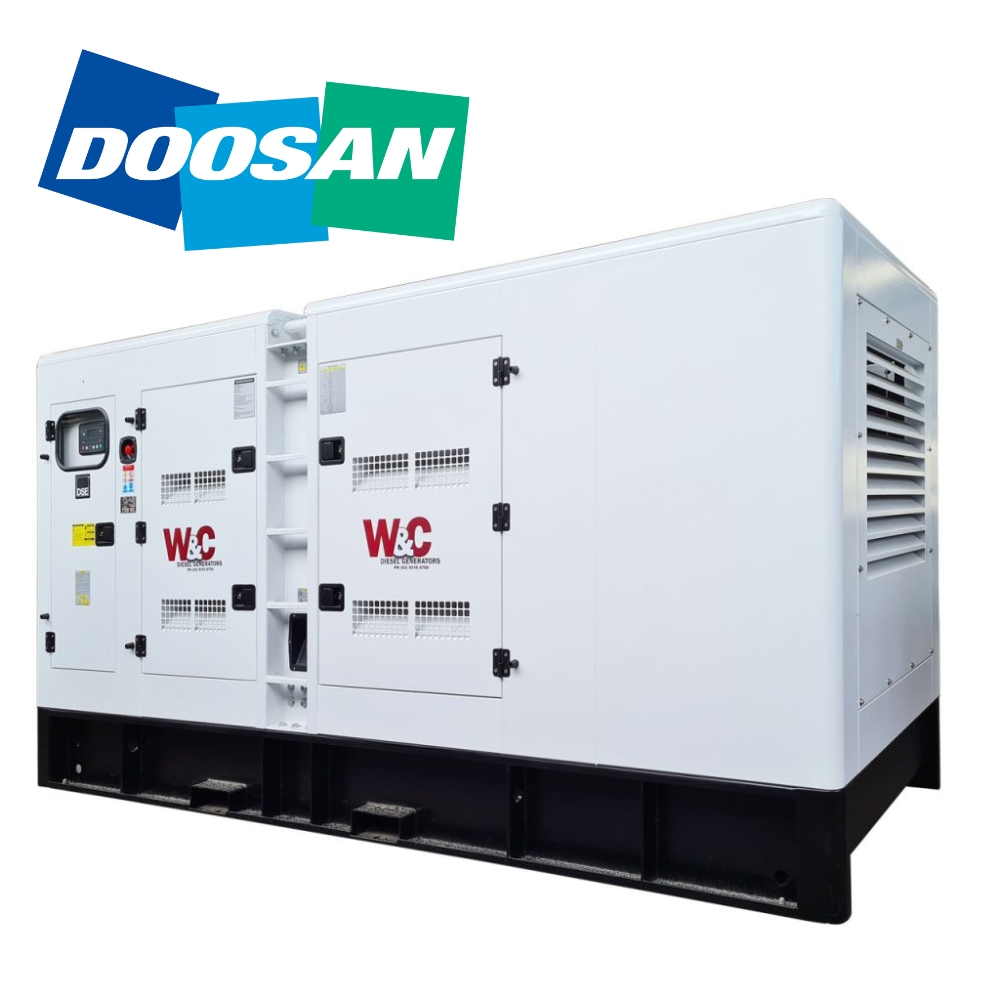

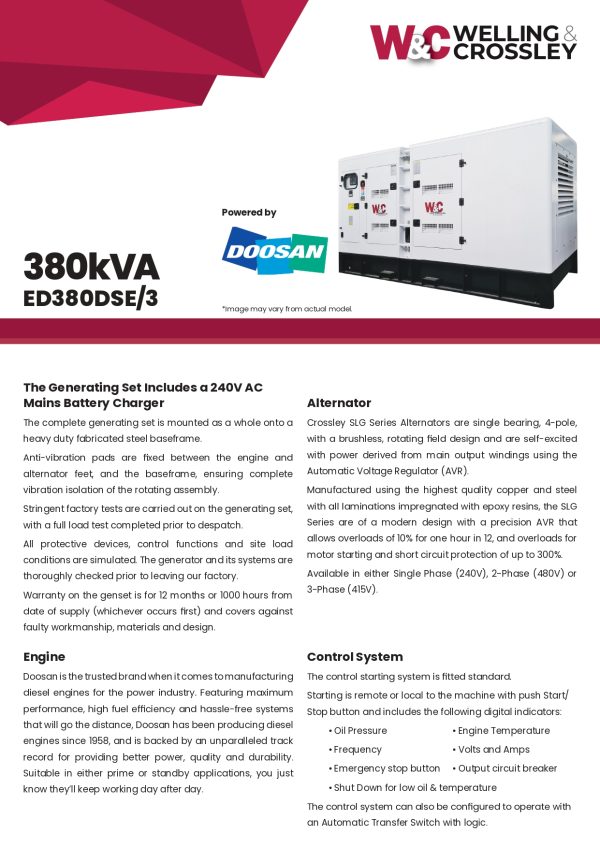

380kVA, 3 Phase, Diesel Standby Generator with Doosan Engine in Canopy Model No.: ED380DSE/3 The Doosan powered ED380DSE/3 is a 380kVA three phase diesel generator. Complete with Crossley SLG series single bearing, 4-pole, brushless alternator, remote start/stop control system and 500 litre fuel tank. Welling and Crossley’s Doosan powered generators are fully integrated power generation systems that are stringently tested to provide optimum performance, reliability, and versatility for both stationary and prime power applications. Weather protective acoustic canopy included. Alternator Alternator Model: Crossley SLG Series Electric Power: Three Phase Active Rating: 380 kVA at 0.8 pf (Standby) Power: 304 kW Electric Potential: 415V Frequency: 50Hz Engine Engine Model: Doosan PT126Ti Engine Speed: 1500 rpm Cylinder No.: 6Ti Cubic Capacity: 11.05 L Bore / Stroke: 123 x 155 mm Compression Ratio: 17.2 : 1 Aspiration: Turbocharged Starter Voltage: 24V Flywheel ( Max. Continuous Power): 315 kW Combustion Air Flow: 24 m³/min Cooling Air Flow: 567 m³/min Cooling System: Radiator Cooled Heat Rejection to Cooling System: 286 kW Exhaust Gas Flow: 60.8 m³/min Exhaust Gas Temperature: 559°C Fuel Type: Diesel Fuel Tank Capacity: 500 L Approx. Fuel Consumption (Continuous): 74.5 Approx. Fuel Consumption (Standby): 80.8 L/hr Generator Dimensions (L x W x H): 4200 x 1500 x 2240 mm (L x W x H) Weight (Dry): 4100 kg *Specifications are subject to change without notice
