Description

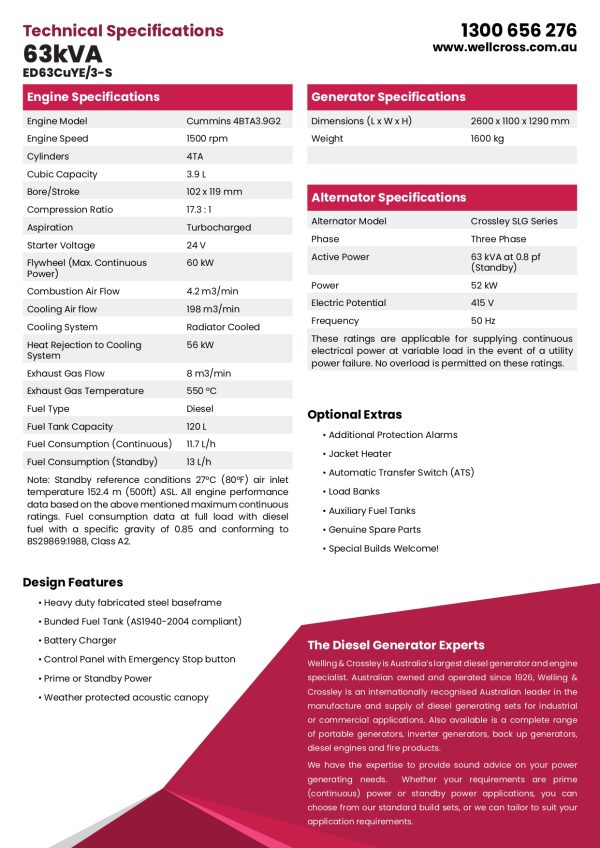

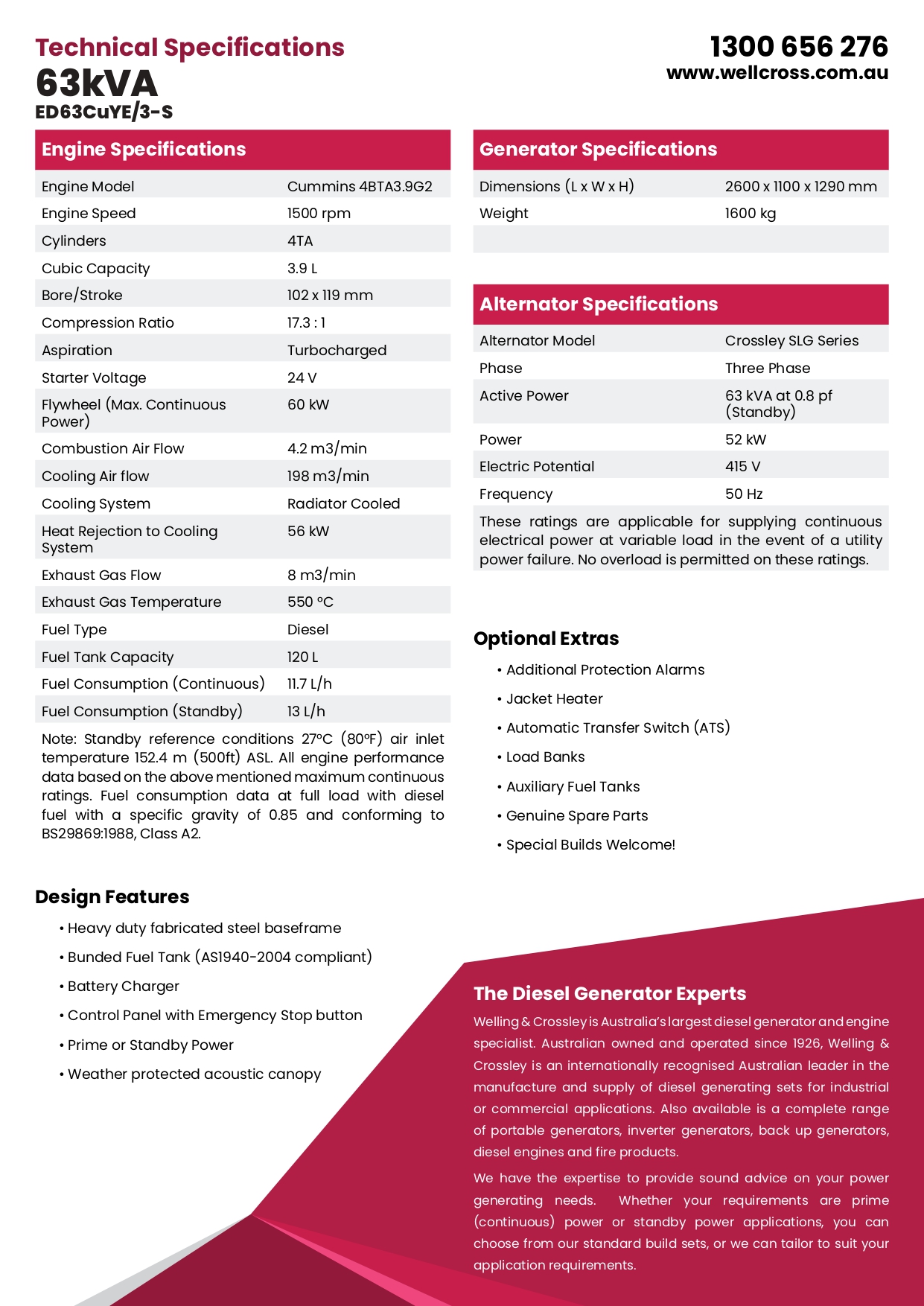

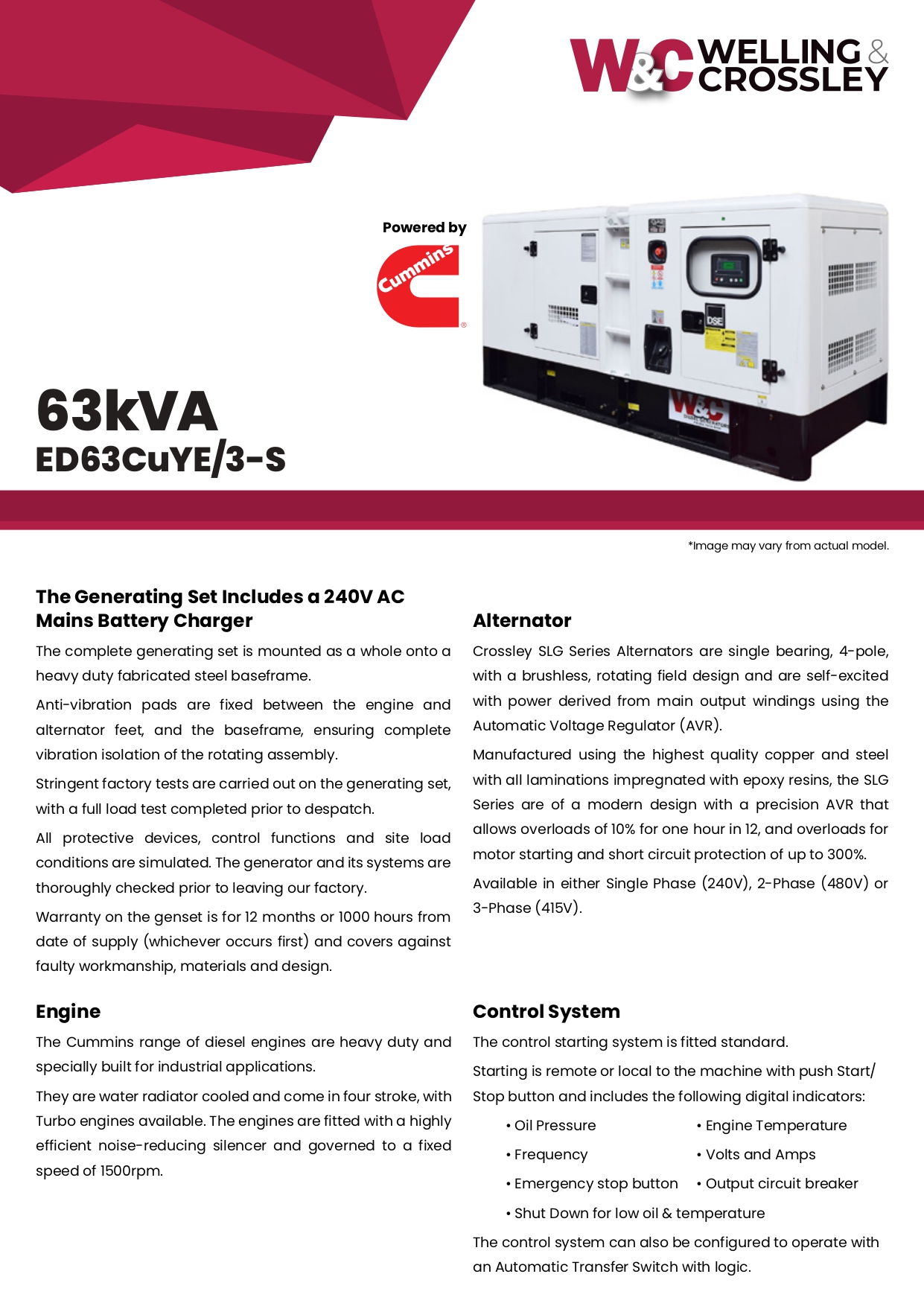

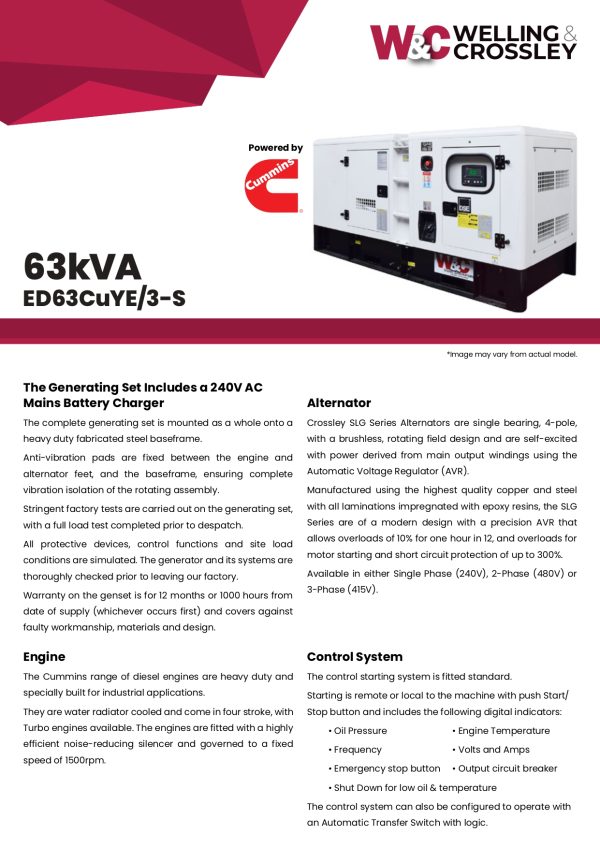

63kVA, 3 Phase, Standby Diesel Generator with Cummins Engine in Canopy Model No.: ED63CuYE/3-S The Cummins powered ED63CuYE/3-S is a 63kVA three phase standby diesel generator. Complete with Crossley SLG series single bearing, 4-pole, brushless alternator, remote start/stop control system, 120 litre fuel tank, weather protective acoustic canopy and Cummins engine. Welling and Crossley Cummins powered generating sets are fully integrated power generation systems that are stringently tested to provide optimum performance, reliability, and versatility for standby applications. Alternator Alternator Model: Crossley SLG Series Electric Power: Three Phase Active Rating: 63 kVA at 0.8 pf (Standby) Power: 52 kW Voltage: 415V Frequency: 50Hz Engine Engine Model: Cummins 4BTA3.9G2 Engine Speed: 1500 rpm Cylinder No.: 4TA Cubic Capacity: 3.9 L Bore / Stroke: 102 x 119 mm Compression Ratio: 17.3 : 1 Aspiration: Turbocharged Starter Voltage: 24V Flywheel ( Max. Continuous Power): 60 kW Combustion Air Flow: 4.2 m³/min Cooling Air Flow: 198 m³/min Cooling System: Radiator Cooled Heat Rejection to Cooling System: 56 kW Exhaust Gas Flow: 12 m³/min Exhaust Gas Temperature: 550°C Fuel Type: Diesel Fuel Tank Capacity: 120 L Approx. Fuel Consumption (Continuous): 11.7 L/hr Approx. Fuel Consumption (Standby): 13.0 L/hr Generator Dimensions (L x W x H): 2600 x 1100 x 1290 mm (L x W x H) Weight: 1600 kg *Specifications are subject to change without notice
