Description

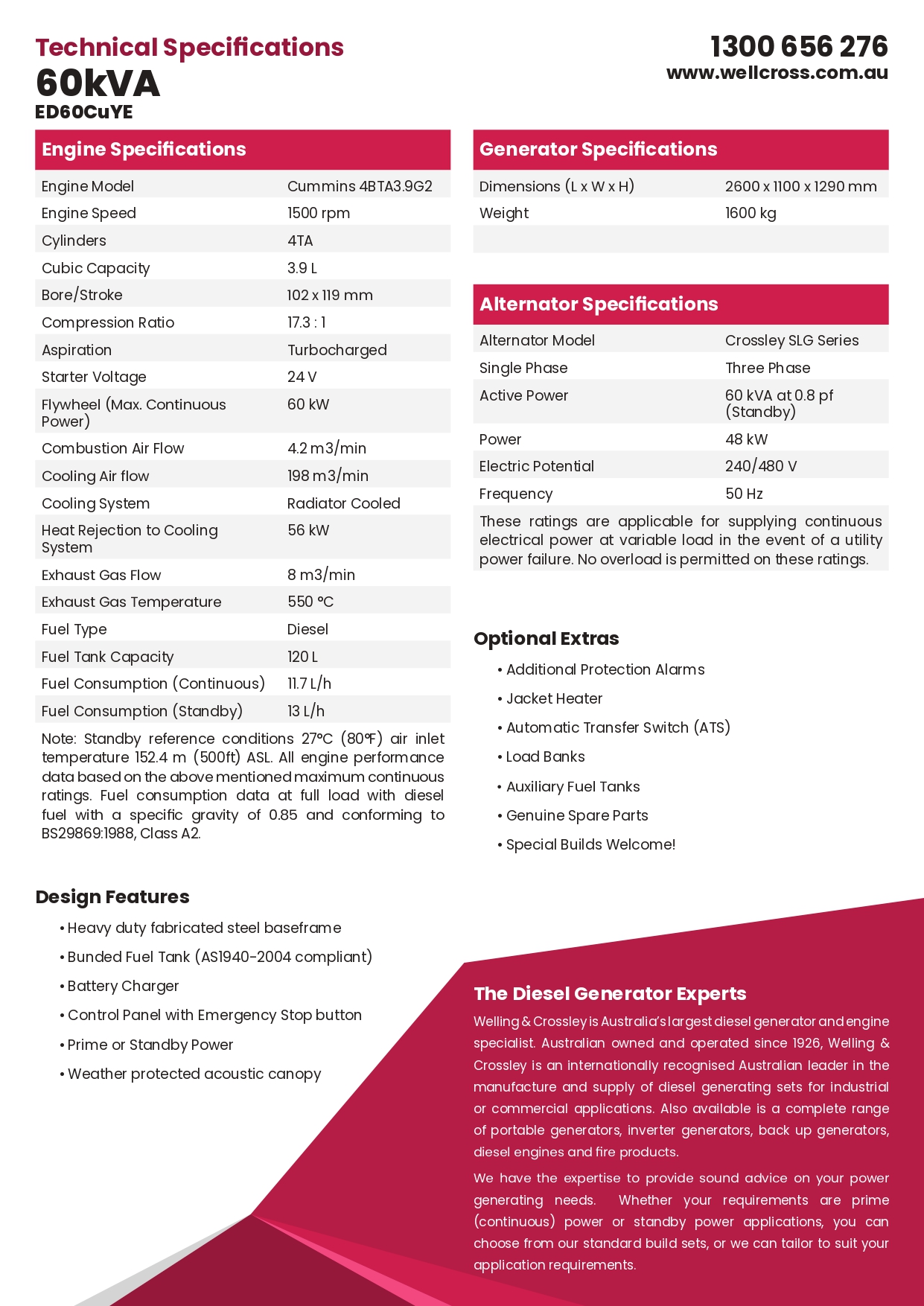

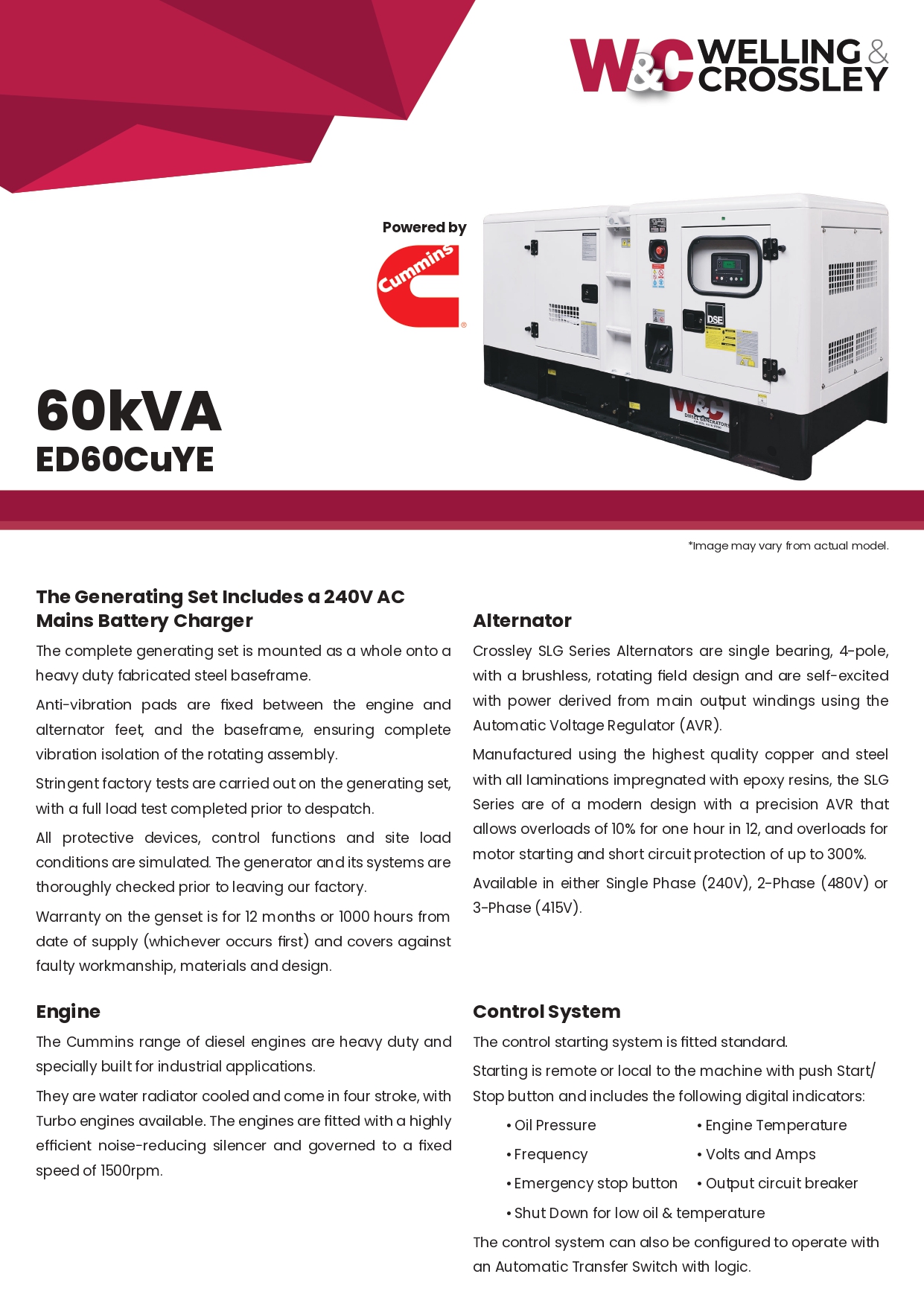

60kVA, Single Phase, Standby Diesel Generator with Cummins Engine in Canopy Model No.: ED60CuYE The Cummins powered ED60CuYE is a 60kVA single phase standby diesel generator. Complete with Crossley SLG series single bearing, 4-pole, brushless alternator, remote start/stop control system, 120 litre fuel tank, weather protective acoustic canopy and Cummins engine. Welling & Crossley Cummins powered generating sets are fully integrated power generation systems that are stringently tested to provide optimum performance, reliability, and versatility for standby applications. Alternator Alternator Model: Crossley SLG Series Electric Power: Single Phase Active Rating: 60 kVA at 0.8 pf (Standby) Power: 48 kW Voltage: 240 / 480V Frequency: 50Hz Engine Engine Model: Cummins 4BTA3.9G2 Engine Speed: 1500 rpm Cylinder No.: 4TA Cubic Capacity: 3.9 L Bore / Stroke: 102 x 119 mm Compression Ratio: 18 : 1 Aspiration: Turbocharged Starter Voltage: 24V Flywheel ( Max. Continuous Power): 60 kW Combustion Air Flow: 4.2 m³/min Cooling Air Flow: 198 m³/min Cooling System: Radiator Cooled Heat Rejection to Cooling System: 56 kW Exhaust Gas Flow: 12 m³/min Exhaust Gas Temperature: 550°C Fuel Type: Diesel Fuel Tank Capacity: 120 L Approx. Fuel Consumption (Continuous): 11.7 L/hr Approx. Fuel Consumption (Standby): 13.0 L/hr Generator Dimensions (L x W x H): 2600 x 1100 x 1290 mm (L x W x H) Weight: 1600 kg *Specifications are subject to change without notice
