Description

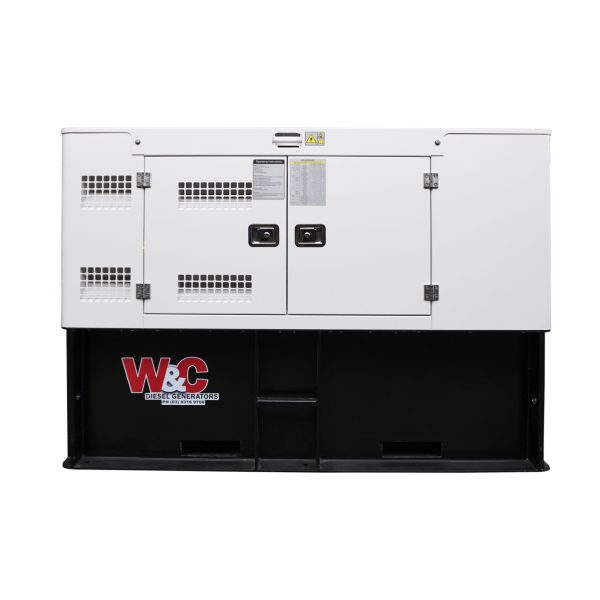

9kVA, Single Phase, Standby Diesel Generator with Perkins Engine with 400L Tank Model No.: ED9PYE-400 The Perkins powered ED9PYE-400 is a 9kVA single phase standby diesel generator. Complete with Crossley SLG series single bearing, 4-pole, brushless alternator, remote start/stop control system, 400 litre fuel tank, weather protective acoustic canopy and Perkins engine. Welling and Crossley Perkins powered generating sets are fully integrated power generation systems that are stringently tested to provide optimum performance, reliability, and versatility for standby applications. Alternator Alternator Model: Crossley Electric Power: Single Phase Active Rating: 8.8 kVA at 0.8 pf (Standby) Power: 7.04 kW Voltage: 240V Frequency: 50Hz Engine Engine Model: Perkins 403D-11G Engine Speed: 1500 rpm Cylinder No.: 3 Cubic Capacity: 1.1 L Bore / Stroke: 77 x 81 mm Compression Ratio: 23.0 : 1 Aspiration: Natural Starter Voltage: 12V Flywheel ( Max. Continuous Power): 8 kW Combustion Air Flow: 1 m³/min Cooling Air Flow: 35 m³/min Cooling System: Radiator Cooled Heat Rejection to Cooling System: 8 kW Exhaust Gas Flow: 2.2 m³/min Exhaust Gas Temperature: 550°C Fuel Type: Diesel Fuel Tank Capacity: 400 L Approx. Fuel Consumption (Continuous): 2.75 L/hr Approx. Fuel Consumption (Standby): 3.0 L/hr Generator Dimensions (L x W x H): 1800 x 900 x 1500 mm (L x W x H) Weight: 1165 kg *Specifications are subject to change without notice
